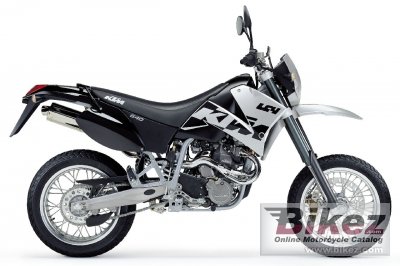

2003 KTM 640 LC4 Supermoto. Picture credits - The respective copyright holder or manufacturer.
Submit more pictures.
|
|
|
General information |
|
Model name
|
KTM 640 LC4 Supermoto |
|
Year of manufacture
|
2003 |
|
Type
|
Super motard |
|
Rating
|
3.3 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
625.0 ccm (38.14 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Output
|
54.8 HP (40.0 kW)) @ 7000 RPM |
|
Torque
|
55.0 Nm (5.6 kgf-m or 40.6 ft.lbs) @ 5500 RPM |
|
Compression
|
11.5:1 |
|
Bore x stroke
|
102.0 x 80.0 mm (4.0 x 3.1 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Carburettor |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
WP-USD 48 MA |
|
Front wheel travel
|
265 mm (10.4 inches) |
|
Rear suspension
|
WP - Monoshock |
|
Rear wheel travel
|
310 mm (12.2 inches) |
|
Front tire
|
120/70-17 |
|
Rear tire
|
160/60-17 |
|
Front brakes
|
Single disc |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
149.0 kg (328.5 pounds) |
|
Power/weight ratio
|
0.3678 HP/kg |
|
Seat height
|
910 mm (35.8 inches) If adjustable, lowest setting. |
|
Ground clearance
|
290 mm (11.4 inches) |
|
Wheelbase
|
1510 mm (59.4 inches) |
|
Fuel capacity
|
12.00 litres (3.17 US gallons) |
|
Reserve fuel capacity
|
2.50 litres (0.66 US gallons) |
|
Other specifications |
