KTM 640 LC4 Adventure 20032003 KTM 640 LC4 Adventure specifications, pictures, reviews and rating |

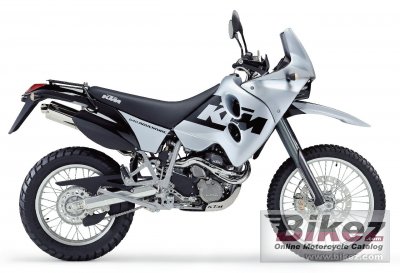

2003 KTM 640 LC4 Adventure. Picture credits - The respective copyright holder or manufacturer. Submit more pictures.
| General information | |
|---|---|
| Model name | KTM 640 LC4 Adventure |
| Model year | 2003 |
| Category | Enduro / offroad |
| Rating | 3.8 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 625.0 ccm (38.14 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Power output | 54.8 HP (40.0 kW)) @ 7000 RPM |
| Torque | 55.0 Nm (5.6 kgf-m or 40.6 ft.lbs) @ 5500 RPM |
| Compression | 11.5:1 |
| Bore x stroke | 101.0 x 78.0 mm (4.0 x 3.1 inches) |
| Valves per cylinder | 4 |
| Fuel system | Carburettor |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | WP-USD 43 MA |
| Front wheel travel | 270 mm (10.6 inches) |
| Rear suspension | WP - Monoshock |
| Rear wheel travel | 320 mm (12.6 inches) |
| Front tire | 90/90-21 |
| Rear tire | 140/80-18 |
| Front brakes | Single disc |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Dry weight | 158.0 kg (348.3 pounds) |
| Power/weight ratio | 0.3468 HP/kg |
| Seat height | 945 mm (37.2 inches) If adjustable, lowest setting. |
| Ground clearance | 315 mm (12.4 inches) |
| Wheelbase | 1510 mm (59.4 inches) |
| Fuel capacity | 28.00 litres (7.40 US gallons) |
| Reserve fuel capacity | 3.50 litres (0.92 US gallons) |
| Other specifications | |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 03 KTM 640 LC4 Adventure discussion group or the general KTM discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Discussions for every bike
Bikez has discussion forums for every bike. View comments, questions and answers at the 2003 KTM 640 LC4 Adventure discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes.| Rating sample for this KTM bike | |
Value for money for the 2003 KTM 640 LC4 Adventure:  (79.8 out of 100)Click here for complete rating. |
|
