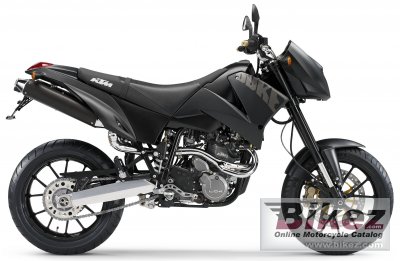

KTM 640 Duke II Black 20052005 KTM 640 Duke II Black specifications, pictures, reviews and rating |
| KTM's profilation of this bike |
| The ultimate fun machine for humiliating the competition on winding mountain roads and attracting attention at your favourite café. |
| General information | |
|---|---|
| Model | KTM 640 Duke II Black |
| Year of manufacture | 2005 |
| Type | Super motard |
| Rating | 3.5 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 625.0 ccm (38.14 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Output | 53.6 HP (39.2 kW)) @ 6750 RPM |
| Torque | 60.0 Nm (6.1 kgf-m or 44.3 ft.lbs) @ 5000 RPM |
| Compression | 11.7:1 |
| Bore x stroke | 101.0 x 78.0 mm (4.0 x 3.1 inches) |
| Valves per cylinder | 4 |
| Fuel system | Carburettor. Mikuni BST 40 |
| Fuel control | Overhead Cams (OHC) |
| Ignition | Kokusan DC-CDI |
| Lubrication system | Pressure lubrication with 2 Eaton pumps |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet multi-disc clutch, operated hydraulically |
| Chassis, suspension, brakes and wheels | |
| Frame type | Chromium-molybdenum, power-coated |
| Rake (fork angle) | 26.5° |
| Trail | 109 mm (4.3 inches) |
| Front suspension | WP-USD 43 mm (1.89´ |
| Rear suspension | WP - Monoshock |
| Rear wheel travel | 335 mm (13.2 inches) |
| Front tire | 120/70-17 |
| Rear tire | 160/70-17 |
| Front brakes | Single disc |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Dry weight | 152.0 kg (335.1 pounds) |
| Power/weight ratio | 0.3529 HP/kg |
| Seat height | 900 mm (35.4 inches) If adjustable, lowest setting. |
| Overall height | 640 mm (25.2 inches) |
| Overall width | 640 mm (25.2 inches) |
| Ground clearance | 280 mm (11.0 inches) |
| Wheelbase | 1460 mm (57.5 inches) |
| Fuel capacity | 11.20 litres (2.96 US gallons) |
| Other specifications | |
| Color options | Black |
| Starter | Electric & kick |
| Comments | Not available in the USA. |
