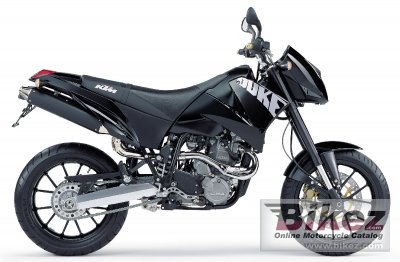

2003 KTM 640 Duke. Picture credits - The respective copyright holder or manufacturer.
Submit more pictures.
|
|
|
General information |
|
Motorcycle name
|
KTM 640 Duke |
|
Model year
|
2003 |
|
Category
|
Super motard |
|
Rating
|
3.5 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
625.0 ccm (38.14 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Power output
|
54.8 HP (40.0 kW)) @ 7500 RPM |
|
Torque
|
60.0 Nm (6.1 kgf-m or 44.3 ft.lbs) @ 5500 RPM |
|
Compression
|
11.5:1 |
|
Bore x stroke
|
101.0 x 78.0 mm (4.0 x 3.1 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Carburettor |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
WP-USD 43 MA |
|
Front wheel travel
|
140 mm (5.5 inches) |
|
Rear suspension
|
WP - Monoshock |
|
Rear wheel travel
|
170 mm (6.7 inches) |
|
Front tire
|
120/70-17 |
|
Rear tire
|
160/70-17 |
|
Front brakes
|
Single disc |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
149.0 kg (328.5 pounds) |
|
Power/weight ratio
|
0.3678 HP/kg |
|
Seat height
|
900 mm (35.4 inches) If adjustable, lowest setting. |
|
Ground clearance
|
270 mm (10.6 inches) |
|
Wheelbase
|
1460 mm (57.5 inches) |
|
Fuel capacity
|
12.00 litres (3.17 US gallons) |
|
Reserve fuel capacity
|
2.50 litres (0.66 US gallons) |
|
Other specifications |
