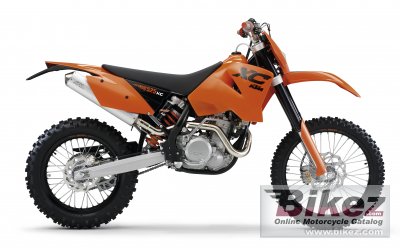

KTM 525 XC Desert Racing 20072007 KTM 525 XC Desert Racing specifications, pictures, reviews and rating |
| KTM's profilation of this bike |
| With plenty of power in every situation, it dominates in the open class, whoever your opponents are. The distance to the person behind you is controlled simply by the right-hand wrist. |
| General information | |
|---|---|
| Model | KTM 525 XC Desert Racing |
| Year model | 2007 |
| Type | Enduro / offroad |
| Rating | 3.7 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 510.4 ccm (31.14 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Compression | 11.0:1 |
| Bore x stroke | 95.0 x 72.0 mm (3.7 x 2.8 inches) |
| Valves per cylinder | 4 |
| Fuel system | Carburettor. Keihin MX FCR 39 |
| Fuel control | Overhead Cams (OHC) |
| Ignition | Kokusan digital 4K-3B |
| Lubrication system | Pressure lubrication with 2 Eaton pumps |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Clutch | Wet multi-disc clutch, operated hydraulically |
| Chassis, suspension, brakes and wheels | |
| Frame type | Central double-cradle-type 25CrMo4 |
| Rake (fork angle) | 26.5° |
| Front suspension | WP USD |
| Front wheel travel | 115 mm (4.5 inches) |
| Rear suspension | WP monoshock PDS |
| Rear wheel travel | 185 mm (7.3 inches) |
| Front tire | 90/90-21 |
| Rear tire | 140/80-18 |
| Front brakes | Single disc |
| Rear brakes | Single disc |
| Physical measures and capacities | |
| Dry weight | 113.8 kg (250.9 pounds) |
| Seat height | 925 mm (36.4 inches) If adjustable, lowest setting. |
| Ground clearance | 380 mm (15.0 inches) |
| Wheelbase | 1481 mm (58.3 inches) |
| Fuel capacity | 13.00 litres (3.43 US gallons) |
| Other specifications | |
| Starter | Kick |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 07 KTM 525 XC Desert Racing discussion group or the general KTM discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Buying a bike starts at Bikez
Get a list of related motorbikes before you buy this KTM. Inspect technical data. Look at photos. Read the riders' comments at the bike's discussion group. And check out the bike's reliability, repair costs, etc. Show any 2007 KTM 525 XC Desert Racing for sale on our Bikez.biz Motorcycle Classifieds. You can also sign up for e-mail notification when such bikes are advertised in the future. And advertise your old MC for sale. Our efficient ads are free. You are also welcome to read and submit motorcycle reviews.| Rating sample for this KTM bike | |
Engine performance for the 2007 KTM 525 XC Desert Racing:  (76.6 out of 100)Click here for complete rating. |
|
