KTM 525 XC Desert Racing 20062006 KTM 525 XC Desert Racing specifications, pictures, reviews and rating |

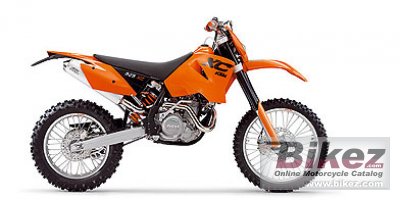

2006 KTM 525 XC Desert Racing. Image credits - KTM.
| KTM's profilation of this bike |
| With plenty of power in every situation, it dominates in the open class, whoever your opponents are. The distance to the person behind you is controlled simply by the right-hand wrist. |
| General information | |
|---|---|
| Model | KTM 525 XC Desert Racing |
| Year of manufacture | 2006 |
| Type | Enduro / offroad |
| Rating | 3.6 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 510.4 ccm (31.14 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Compression | 11.0:1 |
| Bore x stroke | 95.0 x 72.0 mm (3.7 x 2.8 inches) |
| Valves per cylinder | 4 |
| Fuel system | Carburettor. Keihin MX FCR 39 |
| Fuel control | Overhead Cams (OHC) |
| Ignition | Kokusan digital 4K-3B |
| Lubrication system | Pressure lubrication with 2 Eaton pumps |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Clutch | Wet multi-disc clutch, operated hydraulically |
| Exhaust system | Aluminum |
| Chassis, suspension, brakes and wheels | |
| Frame type | Central double-cradle-type 25 CrMo4 |
| Rake (fork angle) | 26.5° |
| Trail | 112 mm (4.4 inches) |
| Front suspension | WP-USD 48 mm (1.89 inches) |
| Front wheel travel | 300 mm (11.8 inches) |
| Rear suspension | WP-PDS-shock absorber |
| Rear wheel travel | 335 mm (13.2 inches) |
| Front tire | 90/90-21 |
| Rear tire | 140/80-18 |
| Front brakes | Single disc |
| Diameter | 260 mm (10.2 inches) |
| Rear brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Dry weight | 114.8 kg (253.1 pounds) |
| Seat height | 925 mm (36.4 inches) If adjustable, lowest setting. |
| Ground clearance | 380 mm (15.0 inches) |
| Wheelbase | 1481 mm (58.3 inches) |
| Fuel capacity | 13.00 litres (3.43 US gallons) |
| Other specifications | |
| Starter | Electric & kick |
| Comments | Not available in the USA. |
