KTM 525 XC ATV 20102010 KTM 525 XC ATV specifications, pictures, reviews and rating |

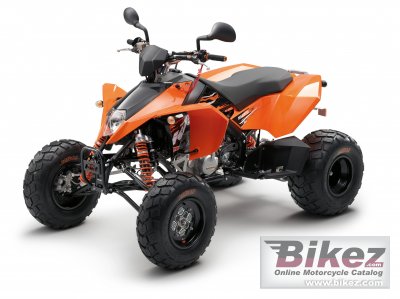

2010 KTM 525 XC ATV. Image credits - KTM.
| KTM's profilation of this bike |
| Born into superiority. This sentence applies to no other ATV better than to the 525 XC. The KTM Enduro flagship sets new standards in the cross-country sector. With extremely high performance and perfect handling, the 525 XC is the ideal candidate for demanding trails or dune adventures. |
| General information | |
|---|---|
| Motorcycle name | KTM 525 XC ATV |
| Year model | 2010 |
| Type | ATV |
| Rating | 3.3 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Engine size | 510.4 ccm (31.14 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Compression | 11.0:1 |
| Bore x stroke | 95.0 x 72.0 mm (3.7 x 2.8 inches) |
| Valves per cylinder | 4 |
| Fuel system | Carburettor. Keihin FCR MX 39 |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | Kokusan digital |
| Lubrication system | Dry sump, pressure lubrication with 2 Eaton pumps |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Clutch | Wet mDouble disk clutch, operated hydraulically |
| Exhaust system | Aluminum XC |
| Chassis, suspension, brakes and wheels | |
| Frame type | Chromoly |
| Front suspension | WP fully adjustable, twin A-arms |
| Front wheel travel | 275 mm (10.8 inches) |
| Rear suspension | WP PDS mono-shock, fully adjustable, swingarm |
| Rear wheel travel | 272 mm (10.7 inches) |
| Front tire | 21/7-10 |
| Rear tire | 20/11-9 |
| Front brakes | Single disc |
| Diameter | 180 mm (7.1 inches) |
| Rear brakes | Single disc |
| Diameter | 200 mm (7.9 inches) |
| Physical measures and capacities | |
| Dry weight | 168.0 kg (370.4 pounds) |
| Seat height | 820 mm (32.3 inches) If adjustable, lowest setting. |
| Ground clearance | 290 mm (11.4 inches) |
| Wheelbase | 1280 mm (50.4 inches) |
| Fuel capacity | 13.40 litres (3.54 US gallons) |
| Other specifications | |
| Color options | Orange |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 10 KTM 525 XC ATV discussion group or the general KTM discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
