KTM 525 XC ATV 20092009 KTM 525 XC ATV specifications, pictures, reviews and rating |

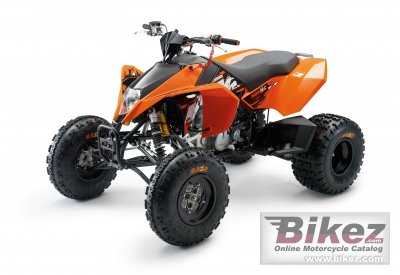

2009 KTM 525 XC ATV. Image credits - KTM.
| KTM's profilation of this bike |
| Born into superiority. This sentence applies to no other ATV better than to the 525 XC. The KTM Enduro flagship sets new standards in the cross-country sector. |
| General information | |
|---|---|
| Motorcycle name | KTM 525 XC ATV |
| Year of manufacture | 2009 |
| Type | ATV |
| Rating | 3.6 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Engine size | 510.4 ccm (31.14 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Compression | 11.0:1 |
| Bore x stroke | 95.0 x 72.0 mm (3.7 x 2.8 inches) |
| Fuel system | Carburettor. Keihin FCR-MX 39 |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | Kokusan digital |
| Lubrication system | Dry sump, pressure lubrication with 2 Eaton pumps |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Clutch | Wet multi-disc clutch, operated hydraulically |
| Exhaust system | Aluminum XC w / Spark Arrestor |
| Chassis, suspension, brakes and wheels | |
| Frame type | Chromoly |
| Front suspension | Ohlins fully adjustable, twin A-arms |
| Front wheel travel | 257 mm (10.1 inches) |
| Rear suspension | Ohlins PDS mono-shock, fully adjustable, swingarm |
| Rear wheel travel | 265 mm (10.4 inches) |
| Front tire | 21/7-10 |
| Rear tire | 20/11-9 |
| Front brakes | Single disc |
| Diameter | 180 mm (7.1 inches) |
| Rear brakes | Single disc |
| Diameter | 200 mm (7.9 inches) |
| Physical measures and capacities | |
| Dry weight | 163.0 kg (359.4 pounds) |
| Seat height | 820 mm (32.3 inches) If adjustable, lowest setting. |
| Ground clearance | 290 mm (11.4 inches) |
| Wheelbase | 1280 mm (50.4 inches) |
| Fuel capacity | 13.40 litres (3.54 US gallons) |
| Other specifications | |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 09 KTM 525 XC ATV discussion group or the general KTM discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Sell or buy used bikes?
Bikez.biz has an efficient motorcycle classifieds. Ads are free. Click here to sell a used 2009 KTM 525 XC ATV or advertise any other MC for sale. You can list all 2009 KTM 525 XC ATV available and also sign up for e-mail notification when such bikes are advertised in the future. Bikez has a high number of users looking for used bikes. Before you buy this bike, you should view the list of related motorbikes Compare technical specs. Look at photos. And check out the rating of the bike's engine performance, repair costs, etc.| Rating sample for this KTM bike | |
Fun-factor for the 2009 KTM 525 XC ATV:  (83.3 out of 100)Click here for complete rating. |
|
