| KTM's profilation of this bike |

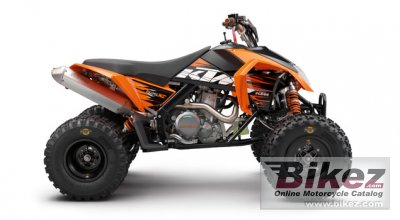

| Lights, mirrors and registration capability underline this ATV´s suitability for use on public roads. Nevertheless, the Enduro-Quad 525 XC is a fully-fledged sports machine that has set new standards in the cross-country scene. With extremely powerful performance and perfect handling, it is an offroad powerhouse on four wheels, bursting with energy, very lightweight and unrivalled. Not least due to the extensive standard equipment, the 525 XC has won unanimous approval from quad fans. |
|
General information |
|
Motorcycle name
|
KTM 525 XC |
|
Model year
|
2013 |
|
Category
|
ATV |
|
Rating
|
3.7 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Displacement
|
510.0 ccm (31.12 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Bore x stroke
|
95.0 x 72.0 mm (3.7 x 2.8 inches) |
|
Ignition
|
Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment, type Kokusan |
|
Lubrication system
|
Forced oil lubrication with 2 Eaton pumps |
|
Cooling system
|
Liquid |
|
Clutch
|
Wet multi-disc clutch / hydraulically operated |
|
Driveline
|
5/8 x 1/4 |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Double-cradle frame made from chrome-molybdenum steel tubing, powder-coated |
|
Front suspension
|
Independent wheels suspension with double wishbone |
|
Front wheel travel
|
275 mm (10.8 inches) |
|
Rear suspension
|
Rigid axle |
|
Rear wheel travel
|
272 mm (10.7 inches) |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Single disc. Floating disc. |
|
Physical measures and capacities |
|
Seat height
|
820 mm (32.3 inches) If adjustable, lowest setting. |
|
Ground clearance
|
290 mm (11.4 inches) |
|
Wheelbase
|
1280 mm (50.4 inches) |
|
Other specifications |
|
Color options
|
Orange |
|
Starter
|
Electric |
