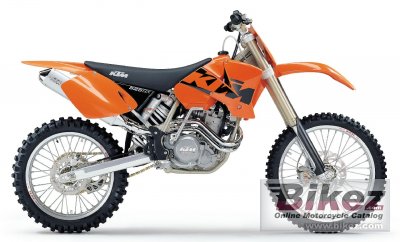

2003 KTM 525 SX Racing. Picture credits - The respective copyright holder or manufacturer.
Submit more pictures.
|
|
|
General information |
|
Motorcycle name
|
KTM 525 SX Racing |
|
Year model
|
2003 |
|
Type
|
Cross / motocross |
|
Rating
|
3.4 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
510.4 ccm (31.14 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Effect
|
61.0 HP (44.5 kW)) @ 8000 RPM |
|
Torque
|
61.0 Nm (6.2 kgf-m or 45.0 ft.lbs) |
|
Compression
|
11.0:1 |
|
Bore x stroke
|
95.0 x 72.0 mm (3.7 x 2.8 inches) |
|
Fuel system
|
Carburettor. Keihin |
|
Lubrication system
|
Wet sump |
|
Cooling system
|
Liquid |
|
Gearbox
|
4-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front wheel travel
|
300 mm (11.8 inches) |
|
Rear wheel travel
|
335 mm (13.2 inches) |
|
Front tire
|
80/100-21 |
|
Rear tire
|
110/90-19 |
|
Front brakes
|
Single disc |
|
Diameter
|
260 mm (10.2 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
107.0 kg (235.9 pounds) |
|
Power/weight ratio
|
0.5701 HP/kg |
|
Seat height
|
925 mm (36.4 inches) If adjustable, lowest setting. |
|
Ground clearance
|
380 mm (15.0 inches) |
|
Wheelbase
|
1481 mm (58.3 inches) |
|
Fuel capacity
|
7.00 litres (1.85 US gallons) |
|
Other specifications |
