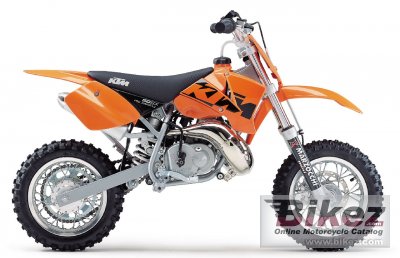

2003 KTM 50 SX Pro Junior LC. Picture credits - The respective copyright holder or manufacturer.
Submit more pictures.
|
|
|
General moped information |
|
Model name
|
KTM 50 SX Pro Junior LC |
|
Year
|
2003 |
|
Category
|
Minibike, cross |
|
Rating
|
3.4 See the detailed rating of the fun-factor, engine performance, racing track capabilities, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
49.8 ccm (3.04 cubic inches) |
|
Engine type
|
Single cylinder, two-stroke |
|
Bore x stroke
|
39.5 x 40.0 mm (1.6 x 1.6 inches) |
|
Fuel system
|
Carburettor |
|
Cooling system
|
Liquid |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front wheel travel
|
140 mm (5.5 inches) |
|
Rear wheel travel
|
205 mm (8.1 inches) |
|
Front tire
|
2.75-10 |
|
Rear tire
|
2.50-10 |
|
Front brakes
|
Single disc |
|
Diameter
|
160 mm (6.3 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Diameter
|
90 mm (3.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
37.6 kg (82.9 pounds) |
|
Seat height
|
585 mm (23.0 inches) If adjustable, lowest setting. |
|
Alternate seat height
|
610 mm (24.0 inches) If adjustable, highest setting. |
|
Ground clearance
|
220 mm (8.7 inches) |
|
Wheelbase
|
910 mm (35.8 inches) |
|
Fuel capacity
|
2.00 litres (0.53 US gallons) |
|
Other specifications |
| Update specs | Report missing specs or required updates. |
|
Further information |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder |
Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 03 KTM 50 SX Pro Junior LC discussion group or the general KTM discussion group. |
| Related bikes | List related bikes for comparison of specs. |
|
|
|
Rating sample for this KTM moped
|
Reliability for the 2003 KTM 50 SX Pro Junior LC:
 (62.8 out of 100)
Click here for complete rating. You can also compare bikes.
|
|
