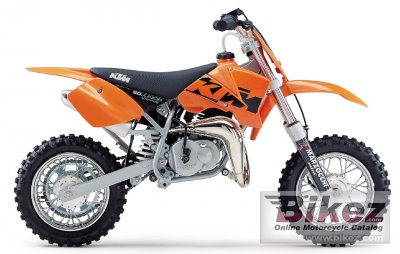

2003 KTM 50 Junior Adventure. Picture credits - The respective copyright holder or manufacturer.
Submit more pictures.
|
|
|
General moped information |
|
Motorcycle name
|
KTM 50 Junior Adventure |
|
Model year
|
2003 |
|
Category
|
Minibike, cross |
|
Rating
|
2.7 See the detailed rating of the fun-factor, engine performance, racing track capabilities, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
49.8 ccm (3.04 cubic inches) |
|
Engine type
|
Single cylinder, two-stroke |
|
Bore x stroke
|
39.5 x 40.0 mm (1.6 x 1.6 inches) |
|
Fuel system
|
Carburettor |
|
Cooling system
|
Air |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front wheel travel
|
140 mm (5.5 inches) |
|
Rear wheel travel
|
205 mm (8.1 inches) |
|
Front tire
|
2.50-10 |
|
Rear tire
|
2.50-10 |
|
Front brakes
|
Expanding brake (drum brake) |
|
Diameter
|
90 mm (3.5 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Diameter
|
90 mm (3.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
38.2 kg (84.2 pounds) |
|
Seat height
|
585 mm (23.0 inches) If adjustable, lowest setting. |
|
Alternate seat height
|
610 mm (24.0 inches) If adjustable, highest setting. |
|
Ground clearance
|
220 mm (8.7 inches) |
|
Wheelbase
|
910 mm (35.8 inches) |
|
Fuel capacity
|
2.00 litres (0.53 US gallons) |
|
