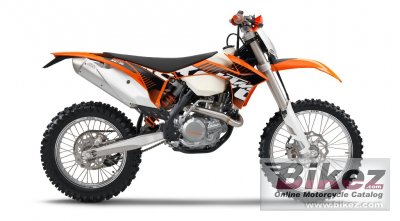

KTM 500 XC-W 20122012 KTM 500 XC-W specifications, pictures, reviews and rating |
| KTM's profilation of this bike |
| For those who want the biggest beast and most powerful machine of the XC-W line, the 500 XC-W is knocking at your door. New SOHC EFI engine tuned for enduro riding that is 5.5 lbs lighter than the previous engine. |
| General information | |
|---|---|
| Model | KTM 500 XC-W |
| Year model | 2012 |
| Type | Enduro / offroad |
| Rating | 3.8 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 510.4 ccm (31.14 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Compression | 13.2:1 |
| Bore x stroke | 95.0 x 72.0 mm (3.7 x 2.8 inches) |
| Fuel system | Injection. EFI |
| Ignition | Contactless controlled fully electronic ignition with digital ignition adjustment, type Kokusan |
| Lubrication system | Pressure circulation lubrication with two rotary pumps |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Frame type | Central tube frame made of chrome molybdenum steel tubing |
| Rake (fork angle) | 26.5° |
| Front suspension | WP Suspension Up Side Down 4860 MXMA PA |
| Front wheel travel | 300 mm (11.8 inches) |
| Rear suspension | WP Suspension PDS 5018 DCC |
| Rear wheel travel | 335 mm (13.2 inches) |
| Front tire | 80/100-21 |
| Rear tire | 100/90-19 |
| Front brakes | Single disc. Brake calipers on floating bearings |
| Diameter | 260 mm (10.2 inches) |
| Rear brakes | Single disc. Brake calipers on floating bearings |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Dry weight | 112.0 kg (246.9 pounds) |
| Seat height | 970 mm (38.2 inches) If adjustable, lowest setting. |
| Ground clearance | 345 mm (13.6 inches) |
| Fuel capacity | 8.50 litres (2.25 US gallons) |
| Other specifications | |
| Color options | Orange/black/white |
| Starter | Electric & kick |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 12 KTM 500 XC-W discussion group or the general KTM discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Free motorcycle classifieds
Click here to sell a used 2012 KTM 500 XC-W or advertise any other MC for sale. You can list all available KTM 500 XC-W bikes and also sign up for e-mail notification when such motorcycles are advertised in the future. Ads with or without pictures are easy to create. Our classifieds are completely free with sections for every country in the world. You can also check out our list of related motorbikes. Compare technical data. Look at photos. View your fellow riders' rating of the bike's reliability, design, engine performance, accident risk, repair cost, etc.| Rating sample for this KTM bike | |
Fun-factor for the 2012 KTM 500 XC-W:  (79.1 out of 100)Click here for complete rating. |
|
