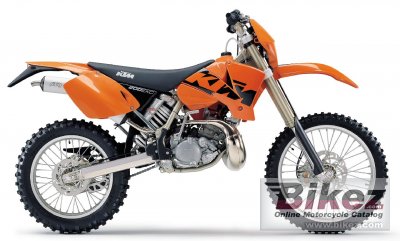

2003 KTM 200 EXC. Picture credits - The respective copyright holder or manufacturer.
Submit more pictures.
|
|
|
General information |
|
Model name
|
KTM 200 EXC |
|
Year of manufacture
|
2003 |
|
Type
|
Enduro / offroad |
|
Rating
|
4.0 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
193.0 ccm (11.78 cubic inches) |
|
Type of engine
|
Single cylinder, two-stroke |
|
Bore x stroke
|
64.0 x 60.0 mm (2.5 x 2.4 inches) |
|
Fuel system
|
Carburettor |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
WP-USD 48 MA |
|
Front wheel travel
|
300 mm (11.8 inches) |
|
Rear suspension
|
WP-PDS-shock absorber |
|
Rear wheel travel
|
335 mm (13.2 inches) |
|
Front tire
|
90/90-21 |
|
Rear tire
|
120/90-18 |
|
Physical measures and capacities |
|
Dry weight
|
102.4 kg (225.8 pounds) |
|
Seat height
|
925 mm (36.4 inches) If adjustable, lowest setting. |
|
Ground clearance
|
390 mm (15.4 inches) |
|
Wheelbase
|
1461 mm (57.5 inches) |
|
Fuel capacity
|
9.00 litres (2.38 US gallons) |
|
Other specifications |
