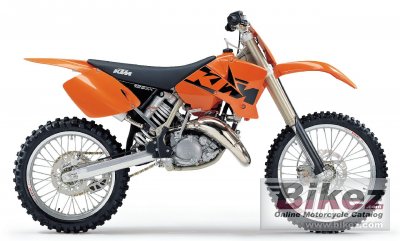

2003 KTM 125 SX

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale
Tip a friend
List related bikes

General information
Model:	KTM 125 SX
Year:	2003
Category:	Cross / motocross
Rating:	74.5 out of 100. Show full rating and compare with other bikes
Engine and transmission
Displacement:	124.80 ccm (7.62 cubic inches)
Engine type:	Single cylinder, two-stroke
Bore x stroke:	45.0 x 40.8 mm (1.8 x 1.6 inches)
Fuel system:	Carburettor
Cooling system:	Liquid
Gearbox:	5-speed
Transmission type, final drive:	Chain
Chassis, suspension, brakes and wheels
Front wheel travel:	300 mm (11.8 inches)
Rear wheel travel:	335 mm (13.2 inches)
Front tyre:	80/100-21
Rear tyre:	100/90-19
Front brakes:	Single disc
Front brakes diameter:	260 mm (10.2 inches)
Rear brakes:	Single disc
Rear brakes diameter:	220 mm (8.7 inches)
Physical measures and capacities
Dry weight:	93.6 kg (206.4 pounds)
Seat height:	925 mm (36.4 inches) If adjustable, lowest setting.
Ground clearance:	390 mm (15.4 inches)
Wheelbase:	1,461 mm (57.5 inches)
Fuel capacity:	7.50 litres (1.98 gallons)
Other specifications
Further information
Insurance costs	Get estimated US insurance cost with a quote from Allstate Motorcycle Insurance.
Parts finder	Chaparral provides online schematics & OEM parts for the US. 2Wheels offers first time 2Wheels buyers $10.00 off now. Same day shipment to the US. Also check out our overview of motorcycle webshops at Bikez.info.
Motocross parts	Parts and accessories available from Revzilla Motocross. Ships to most countries.
Ask questions	Join the 03 KTM 125 SX discussion group or the general KTM discussion group.
Loans, tests, etc	Search the web for dealers, loan costs, tests, customizing, etc.
Related bikes	List related bikes for comparison of specs.

General information

Model:

KTM 125 SX

Year:

2003

Category:

Cross / motocross

Rating:

74.5 out of 100. Show full rating and compare with other bikes

Engine and transmission

Displacement:

124.80 ccm (7.62 cubic inches)

Engine type:

Single cylinder, two-stroke

Bore x stroke:

45.0 x 40.8 mm (1.8 x 1.6 inches)

Fuel system:

Carburettor

Cooling system:

Liquid

Gearbox:

5-speed

Transmission type,
final drive:

Chain

Chassis, suspension, brakes and wheels

Front wheel travel:

300 mm (11.8 inches)

Rear wheel travel:

335 mm (13.2 inches)

Front tyre:

80/100-21

Rear tyre:

100/90-19

Front brakes:

Single disc

Front brakes diameter:

260 mm (10.2 inches)

Rear brakes:

Single disc

Rear brakes diameter:

220 mm (8.7 inches)

Physical measures and capacities

Dry weight:

93.6 kg (206.4 pounds)

Seat height:

925 mm (36.4 inches) If adjustable, lowest setting.

Ground clearance:

390 mm (15.4 inches)

Wheelbase:

1,461 mm (57.5 inches)

Fuel capacity:

7.50 litres (1.98 gallons)
