| Husqvarna's profilation of this bike |
| The WRE125 has always been a key contender in the trail world, and recognised by the press as the perfect machine on which to begin off roading This year it has undergone a facelift and its graphic design now reflects the racing-based models with a new red and white colour scheme. |
|
General information |
|
Motorcycle name
|

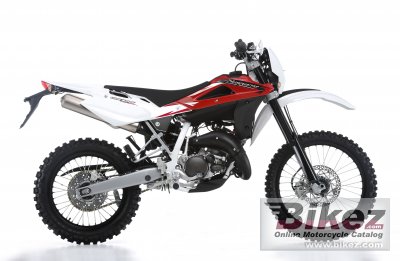

Husqvarna WRE125 |
|
Model year
|
2012 |
|
Category
|
Enduro / offroad |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Displacement
|
124.8 ccm (7.62 cubic inches) |
|
Engine type
|
Single cylinder, two-stroke |
|
Engine details
|
Reed valve in the crankcase and ´H.T.S.´ valve with mechanic control on the exhaust port |
|
Compression
|
8.8:1 |
|
Bore x stroke
|
54.0 x 54.5 mm (2.1 x 2.1 inches) |
|
Fuel system
|
Carburettor. Dell´Orto VHST 28-CS |
|
Ignition
|
C.D.I. electronic, digital type, with adjustable advance |
|
Lubrication system
|
By electrical pump |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Multi plate, cable operation |
|
Driveline
|
6 speed constant mesh |
|
Chassis, suspension, brakes and wheels |
|
Trail
|
102 mm (4.0 inches) |
|
Front suspension
|
Marzocchi Upside-Down telescopic hydraulic fork with advanced axle |
|
Front wheel travel
|
260 mm (10.2 inches) |
|
Rear suspension
|
Sachs Multi Adjustable Shock with Soft Damp Linkage |
|
Rear wheel travel
|
270 mm (10.6 inches) |
|
Front tire
|
90/90-21 |
|
Rear tire
|
120/80-18 |
|
Front brakes
|
Single disc. Fixed disc with hydraulic control and floating caliper |
|
Diameter
|
260 mm (10.2 inches) |
|
Rear brakes
|
Single disc. Fixed disc with hydraulic control and floating caliper |
|
Diameter
|
240 mm (9.4 inches) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
108.0 kg (238.1 pounds) |
|
Seat height
|
944 mm (37.2 inches) If adjustable, lowest setting. |
|
Overall height
|
1245 mm (49.0 inches) |
|
Overall length
|
2208 mm (86.9 inches) |
|
Overall width
|
825 mm (32.5 inches) |
|
Ground clearance
|
330 mm (13.0 inches) |
|
Wheelbase
|
1462 mm (57.6 inches) |
|
Fuel capacity
|
9.50 litres (2.51 US gallons) |
|
Other specifications |
|
Color options
|
Red/white |
|
Starter
|
Kick |
|
Factory warranty
|
2 Years |
