| Husqvarna's profilation of this bike |
| The critically acclaimed chassis is fitted with sealed cartridge Kayaba forks, similar to thiose fitted to the TC250 and receives minor updates with revised switchgear for improved durability and the introduction of a condenser to the electrical system, enabling the fuel injection to continue to operate even without a battery. |
|
General information |
|
Model
|

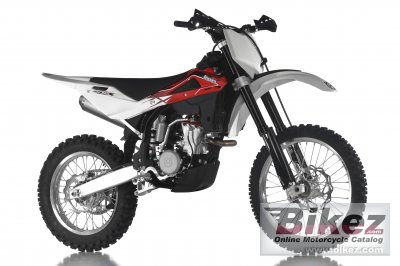

Husqvarna TXC310R |
|
Year of manufacture
|
2013 |
|
Type
|
Enduro / offroad |
|
Rating
|
3.7 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
302.4 ccm (18.45 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Engine details
|
Titanium valves |
|
Bore x stroke
|
82.0 x 57.3 mm (3.2 x 2.3 inches) |
|
Fuel system
|
Injection. Keihin Digital Fuel Injection |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Electronic with adjustable advance |
|
Cooling system
|
Liquid |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Multi plate, hydraulic operation |
|
Driveline
|
6 speed constant mesh |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Chromoly single-tube frame cradle utilizes rounded-rectangle elliptical tubing. |
|
Rake (fork angle)
|
26.5° |
|
Trail
|
106 mm (4.2 inches) |
|
Front suspension
|
48mm Kayaba USD Sealed Cartridge |
|
Front wheel travel
|
300 mm (11.8 inches) |
|
Rear suspension
|
Kayaba Multi Adjustable Shock with Soft Damp Linkage |
|
Rear wheel travel
|
296 mm (11.7 inches) |
|
Front tire
|
90/90-21 |
|
Rear tire
|
120/90-18 |
|
Front brakes
|
Single disc. Wave disc. |
|
Diameter
|
260 mm (10.2 inches) |
|
Rear brakes
|
Single disc. Wave disc. |
|
Diameter
|
240 mm (9.4 inches) |
|
Physical measures and capacities |
|
Dry weight
|
109.1 kg (240.5 pounds) |
|
Seat height
|
950 mm (37.4 inches) If adjustable, lowest setting. |
|
Overall length
|
2176 mm (85.7 inches) |
|
Overall width
|
820 mm (32.3 inches) |
|
Ground clearance
|
290 mm (11.4 inches) |
|
Wheelbase
|
1470 mm (57.9 inches) |
|
Fuel capacity
|
8.50 litres (2.25 US gallons) |
|
Oil capacity
|
0.90 litres (0.95 US quarts) |
|
Other specifications |
|
Color options
|
Red/black |
|
Starter
|
Electric & kick |
|
Factory warranty
|
2 Years |
