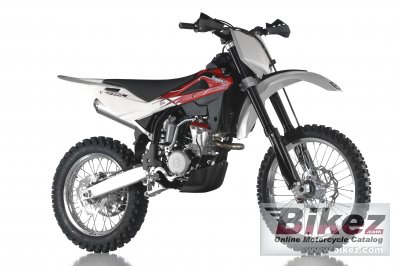

Husqvarna TXC250R 20132013 Husqvarna TXC250R specifications, pictures, reviews and rating |
| Husqvarna's profilation of this bike |
| Based on the 2013 TE250R, the TXC250R is a stripped down, off road competition only version, designed for closed circuit racing and not for Enduros where bikes need to be road registered. |
| General information | |
|---|---|
| Model name | Husqvarna TXC250R |
| Model year | 2013 |
| Category | Enduro / offroad |
| Rating |
Do you know this bike? Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission | |
| Displacement | 249.5 ccm (15.22 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Bore x stroke | 79.0 x 50.9 mm (3.1 x 2.0 inches) |
| Fuel system | Injection. Keihin Digital Fuel Injection |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | Electronic with adjustable advance |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Clutch | Multi plate, hydraulic operation |
| Driveline | 6 speed constant mesh |
| Chassis, suspension, brakes and wheels | |
| Frame type | Chromoly single-tube frame cradle utilizes rounded-rectangle elliptical tubing. |
| Rake (fork angle) | 26.5° |
| Trail | 106 mm (4.2 inches) |
| Front suspension | 48mm Kayaba USD Sealed Cartridge |
| Front wheel travel | 300 mm (11.8 inches) |
| Rear suspension | Kayaba Multi Adjustable Shock with Soft Damp Linkage |
| Rear wheel travel | 296 mm (11.7 inches) |
| Front tire | 90/90-21 |
| Rear tire | 120/90-18 |
| Front brakes | Single disc. Wave disc. |
| Diameter | 260 mm (10.2 inches) |
| Rear brakes | Single disc. Wave disc. |
| Diameter | 240 mm (9.4 inches) |
| Physical measures and capacities | |
| Dry weight | 108.6 kg (239.4 pounds) |
| Seat height | 950 mm (37.4 inches) If adjustable, lowest setting. |
| Overall length | 2176 mm (85.7 inches) |
| Overall width | 820 mm (32.3 inches) |
| Ground clearance | 290 mm (11.4 inches) |
| Wheelbase | 1470 mm (57.9 inches) |
| Fuel capacity | 8.50 litres (2.25 US gallons) |
| Oil capacity | 0.90 litres (0.95 US quarts) |
| Other specifications | |
| Color options | Red/black |
| Starter | Electric & kick |
| Factory warranty | 2 Years |
| Update specs | Report missing specs or required updates. |
