| Husqvarna's profilation of this bike |
| The TXC250 is made for the trail, but bred for competition! With plenty of influence from its TC motocross counterpart, Husqvarna focused on gaining maximum performance from the 2012 TXC250. |
|
General information |
|
Model
|

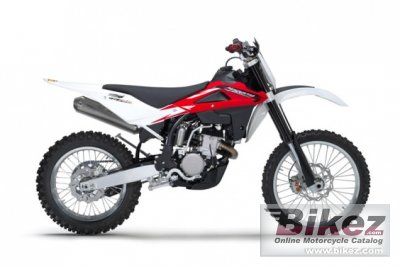

Husqvarna TXC250 |
|
Model year
|
2012 |
|
Category
|
Enduro / offroad |
| Price as new | US$ 7399. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
249.5 ccm (15.22 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Bore x stroke
|
79.0 x 50.9 mm (3.1 x 2.0 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Mikuni Digital Fuel Injection |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Electronic with adjustable advance |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Multi plate, hydraulic operation |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Chromoly single-tube frame cradle utilizes rounded-rectangle elliptical tubing. |
|
Rake (fork angle)
|
26.5° |
|
Trail
|
106 mm (4.2 inches) |
|
Front suspension
|
Kayaba 48mm closed-cartridge fork |
|
Front wheel travel
|
300 mm (11.8 inches) |
|
Rear suspension
|
Kayaba Progressive ´Soft Damp´ hydraulic single shock |
|
Rear wheel travel
|
296 mm (11.7 inches) |
|
Front tire
|
90/90-21 |
|
Rear tire
|
120/90-18 |
|
Front brakes
|
Single disc |
|
Diameter
|
260 mm (10.2 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Physical measures and capacities |
|
Dry weight
|
108.6 kg (239.4 pounds) |
|
Seat height
|
950 mm (37.4 inches) If adjustable, lowest setting. |
|
Overall length
|
2176 mm (85.7 inches) |
|
Overall width
|
820 mm (32.3 inches) |
|
Ground clearance
|
290 mm (11.4 inches) |
|
Wheelbase
|
1470 mm (57.9 inches) |
|
Fuel capacity
|
8.52 litres (2.25 US gallons) |
|
Oil capacity
|
0.90 litres (0.95 US quarts) |
|
Other specifications |
|
Color options
|
Red/White |
|
Starter
|
Electric & kick |
|
Factory warranty
|
2 Years |
