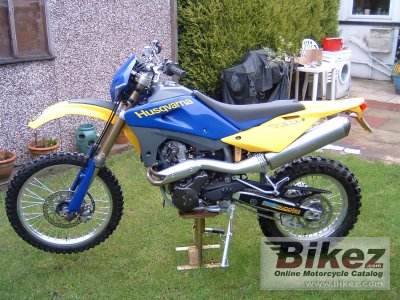

Husqvarna TE 610 e 20052005 Husqvarna TE 610 e specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Model name | Husqvarna TE 610 e |
| Year model | 2005 |
| Type | Enduro / offroad |
| Rating | 3.4 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 577.0 ccm (35.21 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Compression | 12.5:1 |
| Bore x stroke | 98.0 x 76.5 mm (3.9 x 3.0 inches) |
| Valves per cylinder | 4 |
| Fuel system | Carburettor. Dell´Ortho PHM 40 mm |
| Ignition | Analogic |
| Lubrication system | Dry sump with two oil pump rotor and cartridge filter |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet, multiplate type, hydraulic |
| Chassis, suspension, brakes and wheels | |
| Frame type | Single tube cradl, rear frame in light alloy |
| Front suspension | Upside-down telescopic hydraulic fork with advanced axle |
| Front wheel travel | 300 mm (11.8 inches) |
| Rear suspension | Sachs progressive ´soft damp´, single shock |
| Rear wheel travel | 320 mm (12.6 inches) |
| Front tire | 90/90-18 |
| Rear tire | 140/80-18 |
| Front brakes | Single disc |
| Diameter | 260 mm (10.2 inches) |
| Rear brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 146.0 kg (321.9 pounds) |
| Seat height | 890 mm (35.0 inches) If adjustable, lowest setting. |
| Overall height | 1290 mm (50.8 inches) |
| Overall length | 2215 mm (87.2 inches) |
| Overall width | 820 mm (32.3 inches) |
| Ground clearance | 340 mm (13.4 inches) |
| Wheelbase | 1480 mm (58.3 inches) |
| Fuel capacity | 9.10 litres (2.40 US gallons) |
| Other specifications | |
| Color options | Yellow/blue |
| Starter | Electric |
