General information |
|
Motorcycle name
|

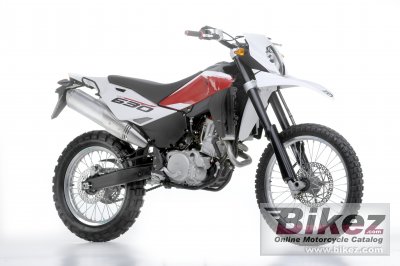

Husqvarna TE630 |
|
Model year
|
2013 |
|
Category
|
Enduro / offroad |
|
Rating
|
3.5 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
600.0 ccm (36.61 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Compression
|
12.4:1 |
|
Bore x stroke
|
100.0 x 76.4 mm (3.9 x 3.0 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Mikuni Digital Fuel Injection |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Electronic, inductive discharge, with adjustable advance |
|
Lubrication system
|
Wet sump with oil pump and cartridge filter |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet, multi-plate type, hydraulic control |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Steel single tube cradle, rear frame in light alloy |
|
Trail
|
115 mm (4.5 inches) |
|
Front suspension
|
Marzocchi USD telescopic hydraulic fork with advanced axle, rebound stroke adjustment |
|
Front wheel travel
|
270 mm (10.6 inches) |
|
Rear suspension
|
Sachs Progressive Soft Damp type with single hydraulic shock absorber, spring pre-load adjustment. Compression and rebound adjustment (compression stroke - double adjustment) |
|
Rear wheel travel
|
320 mm (12.6 inches) |
|
Front tire
|
90/90-21 |
|
Rear tire
|
140/80-18 |
|
Front brakes
|
Single disc |
|
Diameter
|
270 mm (10.6 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
320 mm (12.6 inches) |
|
Physical measures and capacities |
|
Dry weight
|
149.0 kg (328.5 pounds) |
|
Weight incl. oil, gas, etc
|
144.0 kg (317.5 pounds) |
|
Seat height
|
930 mm (36.6 inches) If adjustable, lowest setting. |
|
Overall height
|
1215 mm (47.8 inches) |
|
Overall length
|
2280 mm (89.8 inches) |
|
Overall width
|
820 mm (32.3 inches) |
|
Ground clearance
|
280 mm (11.0 inches) |
|
Wheelbase
|
1505 mm (59.3 inches) |
|
Fuel capacity
|
12.00 litres (3.17 US gallons) |
|
Other specifications |
|
Color options
|
Red/White |
|
Starter
|
Electric |
|
Factory warranty
|
2 Years |
