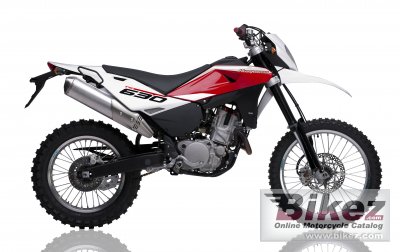

| Husqvarna's profilation of this bike |
| The Husqvarna TE 630 is a new addition to the Dual Purpose Husqvarna range and is launched into a particularly interesting segment of the motorcycle market; 600 cc single-cylinder fourstroke on/off-road bikes. |
| General information |
|---|
| Model: | Husqvarna TE630 |
| Year: | 2012 |
| Category: | Enduro / offroad |
| Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 600.0 ccm (36.61 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Compression: | 12.4:1 |
| Bore x stroke: | 100.0 x 76.4 mm (3.9 x 3.0 inches) |
| Fuel system: | Injection. Mikuni Digital Fuel Injection |
| Ignition: | Electronic, inductive discharge, with adjustable advance |
| Lubrication system: | Wet sump with oil pump and cartridge filter |
Transmission type,
final drive: | Chain |
| Clutch: | Wet, multi-plate type, hydraulic control |
| Driveline: | 6 speed constant mesh |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Steel single tube cradle; rear frame in light alloy |
| Front suspension: | Marzocchi USD telescopic hydraulic fork with advanced axle, rebound stroke adjustment |
| Front wheel travel: | 270 mm (10.6 inches) |
| Rear suspension: | Sachs Progressive Soft Damp type with single hydraulic shock absorber, spring pre-load adjustment. Compression and rebound adjustment (compression stroke - double adjustment) |
| Rear wheel travel: | 320 mm (12.6 inches) |
| Front tyre: | 90/90-21 |
| Rear tyre: | 140/80-18 |
| Front brakes: | Single disc |
| Diameter: | 270 mm (10.6 inches) |
| Rear brakes: | Single disc |
| Diameter: | 320 mm (12.6 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 149.0 kg (328.5 pounds) |
| Seat height: | 930 mm (36.6 inches) If adjustable, lowest setting. |
| Overall height: | 1215 mm (47.8 inches) |
| Overall length: | 2280 mm (89.8 inches) |
| Overall width: | 820 mm (32.3 inches) |
| Ground clearance: | 280 mm (11.0 inches) |
| Fuel capacity: | 12.00 litres (3.17 gallons) |
| Other specifications |
|---|
| Color options: | Red/White |
| Starter: | Electric |
| Instruments: | Digital dash |
| Factory warranty: | 2 Years |
