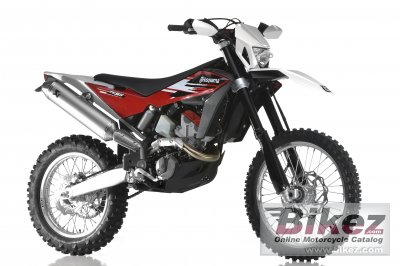

Husqvarna TE511 20132013 Husqvarna TE511 specifications, pictures, reviews and rating |
| Husqvarna's profilation of this bike |
| Introduced in 2011, the open class TE511 was a revolution with the Husqvarna CTS (Constant Traction System) chassis which minimises the effect of the power transfer through the drive chain on the suspension to provide improved traction. |
| General information | |
|---|---|
| Model name | Husqvarna TE511 |
| Year | 2013 |
| Category | Enduro / offroad |
| Rating | 3.0 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 478.0 ccm (29.17 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Engine details | Titanium valves in radial arrangement |
| Bore x stroke | 101.0 x 59.6 mm (4.0 x 2.3 inches) |
| Fuel system | Injection. Keihin Digital Fuel Injection |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Multi plate, hydraulic operation |
| Driveline | 6 speed constant mesh |
| Chassis, suspension, brakes and wheels | |
| Frame type | Double beam, double cradle and high resistance chromoly steel frame (round and elliptical). Light alloy sub frame. |
| Rake (fork angle) | 25.8° |
| Trail | 101 mm (4.0 inches) |
| Front suspension | 48mm Kayaba USD |
| Rear suspension | CTS with Kayaba Multi Adjustable Shock |
| Front tire | 90/90-21 |
| Rear tire | 140/90-18 |
| Front brakes | Single disc. Wave disc. |
| Diameter | 260 mm (10.2 inches) |
| Rear brakes | Single disc. Wave disc. |
| Diameter | 240 mm (9.4 inches) |
| Physical measures and capacities | |
| Dry weight | 113.0 kg (249.1 pounds) |
| Seat height | 958 mm (37.7 inches) If adjustable, lowest setting. |
| Overall length | 2280 mm (89.8 inches) |
| Overall width | 820 mm (32.3 inches) |
| Ground clearance | 335 mm (13.2 inches) |
| Wheelbase | 1490 mm (58.7 inches) |
| Fuel capacity | 8.50 litres (2.25 US gallons) |
| Oil capacity | 1.00 litres (1.06 US quarts) |
| Other specifications | |
| Color options | Red/White/Black |
| Starter | Electric |
| Factory warranty | 2 Years |
