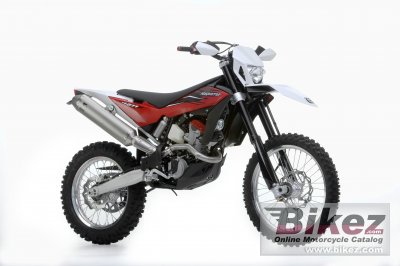

| Husqvarna's profilation of this bike |
| The largest of Husqvarna’s street-legal dual-purpose enduro bikes, the TE511 motor is based on the 449 powerplant, bored out an extra 3mm for bigger torque that comes on smooth and in no short supply. |
|
General information |
|
Motorcycle name
|
Husqvarna TE511 |
|
Model year
|
2012 |
|
Category
|
Enduro / offroad |
| Price as new | US$ 8999. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.9 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
477.5 ccm (29.14 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Engine details
|
Titanium valves in radial arrangement |
|
Bore x stroke
|
101.0 x 59.6 mm (4.0 x 2.3 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Keihin D46 throttle body |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Multi plate, hydraulic operation |
|
Driveline
|
Constant mesh |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Double beam, double cradle and high resistance chromoly steel frame (round and elliptical). Light alloy sub frame. |
|
Rake (fork angle)
|
25.8° |
|
Trail
|
101 mm (4.0 inches) |
|
Front suspension
|
48mm Kayaba USD |
|
Rear suspension
|
Kayaba single shock with remote reservoir, adjustable spring preload, compression (high and low speeed) and rebound damping |
|
Front tire
|
90/90-21 |
|
Rear tire
|
140/90-18 |
|
Front brakes
|
Single disc. Bremo |
|
Diameter
|
260 mm (10.2 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Physical measures and capacities |
|
Dry weight
|
113.0 kg (249.1 pounds) |
|
Seat height
|
958 mm (37.7 inches) If adjustable, lowest setting. |
|
Overall length
|
2280 mm (89.8 inches) |
|
Overall width
|
820 mm (32.3 inches) |
|
Ground clearance
|
335 mm (13.2 inches) |
|
Wheelbase
|
1490 mm (58.7 inches) |
|
Fuel capacity
|
9.50 litres (2.51 US gallons) |
|
Oil capacity
|
1.00 litres (1.06 US quarts) |
|
Other specifications |
|
Color options
|
Red/White |
|
Starter
|
Electric |
|
Factory warranty
|
2 Years |
| Update specs | Report missing specs or required updates. |
|
Further information |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder |
Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 12 Husqvarna TE511 discussion group or the general Husqvarna discussion group. |
| Related bikes | List related bikes for comparison of specs. |
|
|
|
Rating sample for this Husqvarna bike
|
Value for money for the 2012 Husqvarna TE511:
 (81.0 out of 100)
Click here for complete rating. You can also compare bikes.
|
|
