| Husqvarna's profilation of this bike |
| Derived straight from the TE250 platform, the 310 is bored and stroked to 302cc, producing robust torque while also retaining the light weight and agility of a quarter-liter bike. New Leo Vince exhaust improves power output on the fuel-injected motor of the TE310, which also remains street legal for the enthusiast looking for a hard-core off-road bike with a license plate. |
|
General information |
|
Model
|

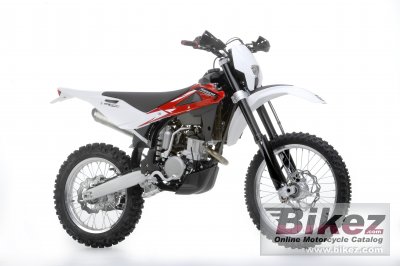

Husqvarna TE310 |
|
Year
|
2012 |
|
Category
|
Enduro / offroad |
| Price as new | US$ 8199. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.4 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
302.4 ccm (18.45 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Engine details
|
Titanium valves in radial arrangemen |
|
Compression
|
13.0:1 |
|
Bore x stroke
|
83.0 x 55.0 mm (3.3 x 2.2 inches) |
|
Fuel system
|
Injection. Mikuni Digital Fuel Injection |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Lubrication system
|
Dry sump |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet, multi-plate with hydraulic control |
|
Driveline
|
Constant mesh |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Chromoly single tube frame cradle utilizes rounded-rectangle, elliptical tubing for maximum strength and durability. |
|
Rake (fork angle)
|
26.5° |
|
Trail
|
106 mm (4.2 inches) |
|
Front suspension
|
48mm Kayaba USD |
|
Front wheel travel
|
300 mm (11.8 inches) |
|
Rear suspension
|
Kayaba Progressive ´Soft Damp´ hydraulic single shock |
|
Rear wheel travel
|
295 mm (11.6 inches) |
|
Front tire
|
90/90-21 |
|
Rear tire
|
140/90-18 |
|
Front brakes
|
Single disc. Bremo |
|
Diameter
|
260 mm (10.2 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Physical measures and capacities |
|
Dry weight
|
112.0 kg (247.0 pounds) |
|
Seat height
|
950 mm (37.4 inches) If adjustable, lowest setting. |
|
Overall length
|
2260 mm (89.0 inches) |
|
Overall width
|
820 mm (32.3 inches) |
|
Ground clearance
|
290 mm (11.4 inches) |
|
Wheelbase
|
1470 mm (57.9 inches) |
|
Fuel capacity
|
8.52 litres (2.25 US gallons) |
|
Oil capacity
|
0.90 litres (0.95 US quarts) |
|
Other specifications |
|
Color options
|
Red/White |
|
Starter
|
Electric & kick |
|
Electrical
|
12 V-7Ah battery. |
|
Factory warranty
|
2 Years |
