Husqvarna TC 510 20052005 Husqvarna TC 510 specifications, pictures, reviews and rating |

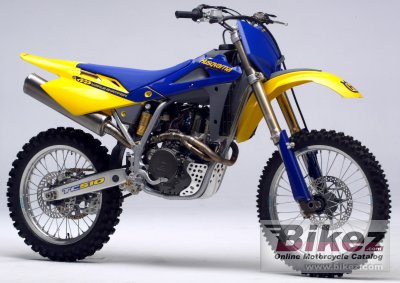

2005 Husqvarna TC 510. Image credits - Husqvarna.
| General information | |
|---|---|
| Motorcycle name | Husqvarna TC 510 |
| Year of manufacture | 2005 |
| Type | Cross / motocross |
| Rating | 3.3 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 500.8 ccm (30.56 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Compression | 12.5:1 |
| Bore x stroke | 96.8 x 67.8 mm (3.8 x 2.7 inches) |
| Valves per cylinder | 4 |
| Fuel system | Carburettor. Mikuni TMR 41 mm |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | Digital |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Upside-down telescopic hydraulic adjustable fork |
| Front wheel travel | 300 mm (11.8 inches) |
| Rear suspension | Progressive ´soft damp´ with hydraulic adjustable single shock absorber |
| Rear wheel travel | 320 mm (12.6 inches) |
| Front tire | 80/100-21 |
| Rear tire | 110/90-19 |
| Front brakes | Single disc |
| Diameter | 260 mm (10.2 inches) |
| Rear brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 114.6 kg (252.6 pounds) |
| Seat height | 975 mm (38.4 inches) If adjustable, lowest setting. |
| Overall height | 1280 mm (50.4 inches) |
| Overall length | 2175 mm (85.6 inches) |
| Overall width | 820 mm (32.3 inches) |
| Ground clearance | 340 mm (13.4 inches) |
| Wheelbase | 1475 mm (58.1 inches) |
| Fuel capacity | 7.70 litres (2.03 US gallons) |
| Other specifications | |
| Color options | Yellow/blue |
