General information |
|
Motorcycle name
|

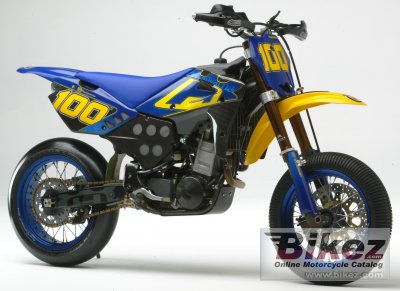

Husqvarna SMR 630 |
|
Year of manufacture
|
2005 |
|
Type
|
Super motard |
|
Rating
|
3.4 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
633.6 ccm (38.66 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Compression
|
12.0:1 |
|
Bore x stroke
|
98.0 x 84.0 mm (3.9 x 3.3 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Carburettor |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
Analogic |
|
Lubrication system
|
Forced lubrification with double pump |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet, multiplate type; mechanic control |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Steel single tube cradle (round tubes);rear frame in light alloy |
|
Front suspension
|
Marzocchi 45mm, upside-down telescopic hydraulic fork with advanced axle |
|
Front wheel travel
|
260 mm (10.2 inches) |
|
Rear suspension
|
Progressive |
|
Rear wheel travel
|
290 mm (11.4 inches) |
|
Front tire
|
120/70-,17 |
|
Rear tire
|
150/60-17 |
|
Front brakes
|
Single disc |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
148.3 kg (326.9 pounds) |
|
Seat height
|
850 mm (33.5 inches) If adjustable, lowest setting. |
|
Overall height
|
1240 mm (48.8 inches) |
|
Overall length
|
2083 mm (82.0 inches) |
|
Overall width
|
840 mm (33.1 inches) |
|
Ground clearance
|
240 mm (9.4 inches) |
|
Wheelbase
|
1500 mm (59.1 inches) |
|
Fuel capacity
|
9.00 litres (2.38 US gallons) |
|
Other specifications |
|
Color options
|
Yellow/blue |
|
Starter
|
Electric |
