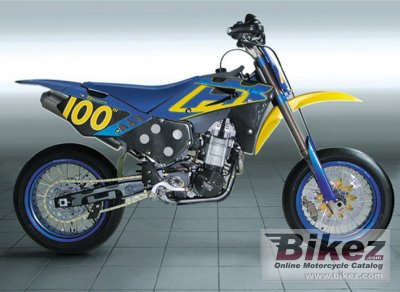

Husqvarna SMR 630 20042004 Husqvarna SMR 630 specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Model | Husqvarna SMR 630 |
| Model year | 2004 |
| Category | Super motard |
| Rating | 3.4 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 576.3 ccm (35.16 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Compression | 12.0:1 |
| Bore x stroke | 98.0 x 76.4 mm (3.9 x 3.0 inches) |
| Valves per cylinder | 4 |
| Fuel system | Carburettor |
| Fuel control | Single Overhead Cams (SOHC) |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Frame type | Steel singel tube cradle. Rear frame in light alloy. |
| Front suspension | Upside-down telescopic hydraulic adjustable fork |
| Front wheel travel | 250 mm (9.8 inches) |
| Rear suspension | Progressive soft-dump with single hydraulic |
| Rear wheel travel | 285 mm (11.2 inches) |
| Front tire | 120/70-17 |
| Rear tire | 150/60-17 |
| Front brakes | Single disc |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 148.3 kg (326.9 pounds) |
| Seat height | 850 mm (33.5 inches) If adjustable, lowest setting. |
| Overall height | 1240 mm (48.8 inches) |
| Overall length | 2200 mm (86.6 inches) |
| Overall width | 820 mm (32.3 inches) |
| Ground clearance | 240 mm (9.4 inches) |
| Wheelbase | 1500 mm (59.1 inches) |
| Fuel capacity | 9.10 litres (2.40 US gallons) |
| Other specifications | |
| Color options | Blue/yellow |
