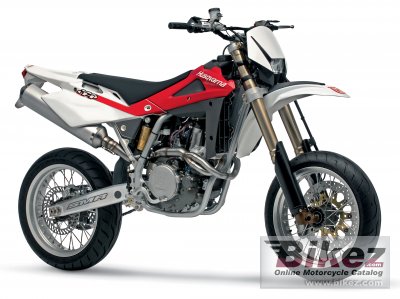

Husqvarna SMR 510 20062006 Husqvarna SMR 510 specifications, pictures, reviews and rating |
| Husqvarna's profilation of this bike |
| The 2006 Husqvarna SMR 510 is one of our new race-ready competition machines that is now 50-State Street Legal. |
| General information | |
|---|---|
| Model | Husqvarna SMR 510 |
| Year of manufacture | 2006 |
| Type | Super motard |
| Price as new | US$ 7699. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.6 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 501.0 ccm (30.57 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Output | 59.8 HP (43.6 kW)) @ 8000 RPM |
| Torque | 49.0 Nm (5.0 kgf-m or 36.1 ft.lbs) @ 6400 RPM |
| Compression | 12.5:1 |
| Bore x stroke | 97.0 x 67.8 mm (3.8 x 2.7 inches) |
| Fuel system | Carburettor. 41mm Keihin FCR |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | CDI |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet, multiplate |
| Chassis, suspension, brakes and wheels | |
| Frame type | Steel single cradle |
| Front suspension | Marzoochi |
| Front wheel travel | 250 mm (9.8 inches) |
| Rear suspension | Ohlins |
| Rear wheel travel | 290 mm (11.4 inches) |
| Front tire | 120/70-17 |
| Rear tire | 150/60-17 |
| Front brakes | Single disc |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc |
| Diameter | 240 mm (9.4 inches) |
| Physical measures and capacities | |
| Dry weight | 109.3 kg (241.0 pounds) |
| Power/weight ratio | 0.5471 HP/kg |
| Seat height | 820 mm (32.3 inches) If adjustable, lowest setting. |
| Wheelbase | 1497 mm (58.9 inches) |
| Fuel capacity | 9.20 litres (2.43 US gallons) |
| Other specifications | |
| Color options | Red/white |
| Modifications compared to previous model | Husqvarna engineers have focused on the engine to increase both power output and reliability. The titanium intake valves have been increased from 33mm to 37mm, and the exhaust has be increased from 28.5mm to 31mm. |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 06 Husqvarna SMR 510 discussion group or the general Husqvarna discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Buying a bike starts at Bikez
Get a list of related motorbikes before you buy this Husqvarna. Inspect technical data. Look at photos. Read the riders' comments at the bike's discussion group. And check out the bike's reliability, repair costs, etc. Show any 2006 Husqvarna SMR 510 for sale on our Bikez.biz Motorcycle Classifieds. You can also sign up for e-mail notification when such bikes are advertised in the future. And advertise your old MC for sale. Our efficient ads are free. You are also welcome to read and submit motorcycle reviews.| Rating sample for this Husqvarna bike | |
Design and look for the 2006 Husqvarna SMR 510:  (72.1 out of 100)Click here for complete rating. |
|
