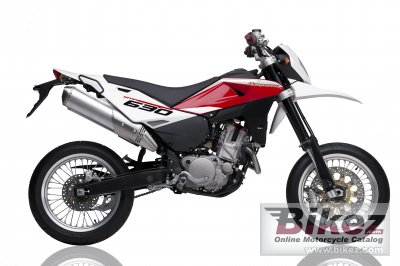

| Husqvarna's profilation of this bike |
| The SMR630 was inspired by the design of the 610, but completely renewed in terms of handling and performance. The bodywork is all new, giving the bike a more streamlined and aggressive look. |
|
General information |
|
Model
|
Husqvarna SMR630 |
|
Year
|
2012 |
|
Category
|
Super motard |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Displacement
|
600.0 ccm (36.61 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Compression
|
12.4:1 |
|
Bore x stroke
|
100.0 x 76.4 mm (3.9 x 3.0 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Mikuni Digital Fuel Injection |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Electronic, inductive discharge, with adjustable advance (digital control) |
|
Lubrication system
|
Wet sump with oil pump and cartridge filter |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet, multi-plate type, hydraulic control |
|
Driveline
|
6 speed constant mesh |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Steel single tube cradle; rear frame in light alloy |
|
Trail
|
83 mm (3.3 inches) |
|
Front suspension
|
Marzocchi USD telescopic hydraulic fork with advanced axle, rebound stroke adjustment |
|
Front wheel travel
|
250 mm (9.8 inches) |
|
Rear suspension
|
Sachs Progressive Soft Damp type with single hydraulic shock absorber, spring pre-load adjustment. Compression and rebound adjustment (compression stroke - double adjustment) |
|
Rear wheel travel
|
290 mm (11.4 inches) |
|
Front tire
|
120/70-17 |
|
Rear tire
|
150/60-17 |
|
Front brakes
|
Single disc. Floating disc with hydraulic control and radial caliper |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc. Floating disc with hydraulic control and floating caliper |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
151.0 kg (332.9 pounds) |
|
Seat height
|
910 mm (35.8 inches) If adjustable, lowest setting. |
|
Overall height
|
1190 mm (46.9 inches) |
|
Overall length
|
2170 mm (85.4 inches) |
|
Overall width
|
840 mm (33.1 inches) |
|
Ground clearance
|
240 mm (9.4 inches) |
|
Wheelbase
|
1495 mm (58.9 inches) |
|
Fuel capacity
|
12.00 litres (3.17 US gallons) |
|
Other specifications |
|
Color options
|
White/black |
|
Starter
|
Electric |
|
Instruments
|
Digital dash |
|
Factory warranty
|
2 Years |
