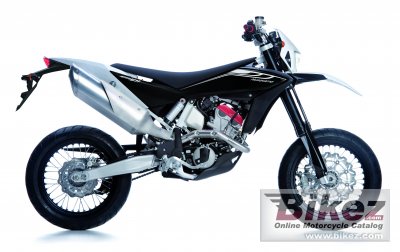

Husqvarna SMR511 20122012 Husqvarna SMR511 specifications, pictures, reviews and rating |
| Husqvarna's profilation of this bike |
| The line is completely revolutionary: slim, svelte and refined. The single piece side panel runs from where traditionally the fuel tank would be, all the way back to the rear mudguard, allowing the rider free and unhindered movement. There is no chance of snagging boots or jeans on the edges of the panels with this design. |
| General information | |
|---|---|
| Model name | Husqvarna SMR511 |
| Year | 2012 |
| Category | Super motard |
| Rating | 3.5 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 477.5 ccm (29.14 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Compression | 12.0:1 |
| Bore x stroke | 101.0 x 59.6 mm (4.0 x 2.3 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection. Keihin Digital Fuel Injection |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | C.D.I. electronic, with adjustable advance |
| Lubrication system | Dry sump with two oil pump rotor and cartridge filter |
| Cooling system | Liquid |
| Transmission type | Chain (final drive) |
| Clutch | Wet, multi-plate type, hydraulic control |
| Driveline | 6 speed constant mesh |
| Chassis, suspension, brakes and wheels | |
| Frame type | Type |
| Front suspension | Marzocchi USD telescopic hydraulic fork with advanced axle, compression and rebound stroke adjustment |
| Front wheel travel | 250 mm (9.8 inches) |
| Rear suspension | Sachs Progressive link with single hydraulic shock absorber |
| Rear wheel travel | 290 mm (11.4 inches) |
| Front tire | 120/70-17 |
| Rear tire | 150/60-17 |
| Front brakes | Single disc |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc |
| Diameter | 240 mm (9.4 inches) |
| Physical measures and capacities | |
| Dry weight | 118.0 kg (260.1 pounds) |
| Seat height | 915 mm (36.0 inches) If adjustable, lowest setting. |
| Overall height | 1210 mm (47.6 inches) |
| Overall length | 2170 mm (85.4 inches) |
| Overall width | 820 mm (32.3 inches) |
| Ground clearance | 280 mm (11.0 inches) |
| Wheelbase | 1460 mm (57.5 inches) |
| Fuel capacity | 8.50 litres (2.25 US gallons) |
| Other specifications | |
| Color options | Red/White |
| Starter | Electric |
| Instruments | Digital dash |
| Factory warranty | 2 Years |
