Husqvarna SM 610 S 20042004 Husqvarna SM 610 S specifications, pictures, reviews and rating |

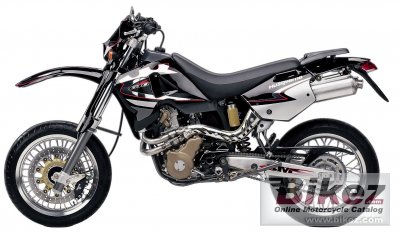

2004 Husqvarna SM 610 S. Image credits - Husqvarna.
| General information | |
|---|---|
| Motorcycle name | Husqvarna SM 610 S |
| Year of manufacture | 2004 |
| Type | Super motard |
| Rating | 3.1 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 576.3 ccm (35.16 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Compression | 9.0:1 |
| Bore x stroke | 98.0 x 76.4 mm (3.9 x 3.0 inches) |
| Valves per cylinder | 4 |
| Fuel system | Carburettor |
| Fuel control | Single Overhead Cams (SOHC) |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Frame type | Steel singel tube cradle. Rear frame with square steel tubes. |
| Front suspension | Upside-down telescopic hydraulic adjustable fork |
| Front wheel travel | 300 mm (11.8 inches) |
| Rear suspension | Progressive soft-dump with single hydraulic |
| Rear wheel travel | 320 mm (12.6 inches) |
| Front tire | 120/70-17 |
| Rear tire | 150/60-17 |
| Front brakes | Single disc |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 148.7 kg (327.8 pounds) |
| Seat height | 850 mm (33.5 inches) If adjustable, lowest setting. |
| Overall height | 1260 mm (49.6 inches) |
| Overall length | 2170 mm (85.4 inches) |
| Overall width | 810 mm (31.9 inches) |
| Ground clearance | 240 mm (9.4 inches) |
| Wheelbase | 1500 mm (59.1 inches) |
| Fuel capacity | 9.10 litres (2.40 US gallons) |
| Other specifications | |
| Color options | Red/black/grey |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 04 Husqvarna SM 610 S discussion group or the general Husqvarna discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Sell or buy used bikes?
Bikez.biz has an efficient motorcycle classifieds. Ads are free. Click here to sell a used 2004 Husqvarna SM 610 S or advertise any other MC for sale. You can list all 2004 Husqvarna SM 610 S available and also sign up for e-mail notification when such bikes are advertised in the future. Bikez has a high number of users looking for used bikes. Before you buy this bike, you should view the list of related motorbikes Compare technical specs. Look at photos. And check out the rating of the bike's engine performance, repair costs, etc.| Rating sample for this Husqvarna bike | |
Engine performance for the 2004 Husqvarna SM 610 S:  (72.8 out of 100)Click here for complete rating. |
|
