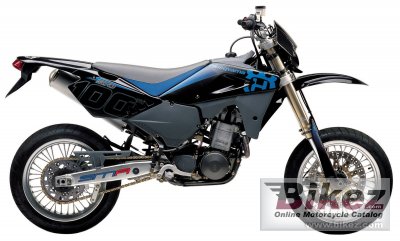

Husqvarna SM 570 R 20042004 Husqvarna SM 570 R specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Model | Husqvarna SM 570 R |
| Year model | 2004 |
| Type | Enduro / offroad |
| Rating | 3.8 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 576.3 ccm (35.16 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Compression | 10.0:1 |
| Bore x stroke | 98.0 x 76.4 mm (3.9 x 3.0 inches) |
| Valves per cylinder | 4 |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Frame type | Steel singel tube cradle. Rear frame in light alloy. |
| Front suspension | Marzocchi upside-down telescopic hydraulic adjustable fork |
| Front wheel travel | 300 mm (11.8 inches) |
| Rear suspension | Sachs progressive soft-dump with single hydraulic |
| Rear wheel travel | 320 mm (12.6 inches) |
| Front tire | 120/70-17 |
| Rear tire | 150/60-17 |
| Front brakes | Single disc |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Dry weight | 125.3 kg (276.2 pounds) |
| Seat height | 920 mm (36.2 inches) If adjustable, lowest setting. |
| Overall height | 1260 mm (49.6 inches) |
| Overall length | 2170 mm (85.4 inches) |
| Overall width | 810 mm (31.9 inches) |
| Ground clearance | 265 mm (10.4 inches) |
| Wheelbase | 1495 mm (58.9 inches) |
| Fuel capacity | 9.00 litres (2.38 US gallons) |
| Other specifications | |
| Color options | Red/yellow/blue |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 04 Husqvarna SM 570 R discussion group or the general Husqvarna discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
