| Husqvarna's profilation of this bike |

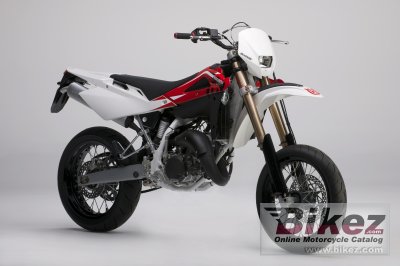

| The 2010 Husqvarna SM125S is the perfect choice for the street wise learner. Built to exacting standards using some of the best brand name components you can find, the SM125S may be only be 125cc but it´s a proper motorcycle, built to last. |
|
General information |
|
Motorcycle name
|
Husqvarna SM 125S |
|
Year of manufacture
|
2010 |
|
Type
|
Super motard |
|
Rating
|
3.0 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
124.8 ccm (7.62 cubic inches) |
|
Type of engine
|
Single cylinder, two-stroke |
|
Output
|
15.0 HP (10.9 kW)) @ 9500 RPM |
|
Compression
|
8.8:1 |
|
Bore x stroke
|
54.0 x 54.5 mm (2.1 x 2.1 inches) |
|
Fuel system
|
Carburettor. Dell Orto VHST28 |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet multiplate type, mechanic control |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Double tube cradle with steel round tubes, rear frame with steel square tubes |
|
Front suspension
|
41mm Paioli USD |
|
Front wheel travel
|
260 mm (10.2 inches) |
|
Rear suspension
|
Paioli adjustable shock absorber with Soft Damp linkage |
|
Rear wheel travel
|
220 mm (8.7 inches) |
|
Front tire
|
110/70-17 |
|
Rear tire
|
150/60-17 |
|
Front brakes
|
Single disc. 2-piston calipers |
|
Diameter
|
260 mm (10.2 inches) |
|
Rear brakes
|
Single disc. 2-piston calipers |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
113.5 kg (250.2 pounds) |
|
Power/weight ratio
|
0.1322 HP/kg |
|
Seat height
|
870 mm (34.3 inches) If adjustable, lowest setting. |
|
Overall length
|
2210 mm (87.0 inches) |
|
Overall width
|
825 mm (32.5 inches) |
|
Ground clearance
|
265 mm (10.4 inches) |
|
Wheelbase
|
1470 mm (57.9 inches) |
|
Fuel capacity
|
9.50 litres (2.51 US gallons) |
|
Other specifications |
|
Color options
|
Red/white, white |
|
Starter
|
Kick |
