| Husqvarna's profilation of this bike |
| The SM 125 has become an icon for sixteen-year-olds, a sales phenomenon and a new fashion. |
|
General information |
|
Model name
|

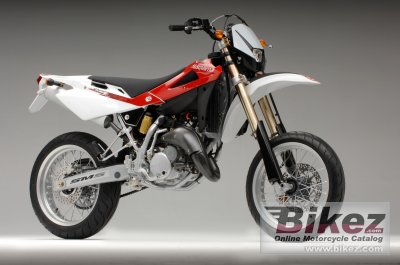

Husqvarna SM 125S |
|
Year of manufacture
|
2008 |
|
Type
|
Super motard |
|
Rating
|
3.6 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
125.0 ccm (7.63 cubic inches) |
|
Type of engine
|
Single cylinder, two-stroke |
|
Output
|
15.0 HP (10.9 kW)) @ 9500 RPM |
|
Compression
|
8.8:1 |
|
Bore x stroke
|
54.0 x 54.5 mm (2.1 x 2.1 inches) |
|
Fuel system
|
Carburettor. DellÒrto PHBH 28mm |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Clutch
|
Wet multiplate type, mechanic control |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Double tube cradle with steel round tubes, rear frame with steel square tubes |
|
Front suspension
|
Upside-down telescopic hydraulic adjustable fork (diam.40mm) Marzocci |
|
Front wheel travel
|
260 mm (10.2 inches) |
|
Rear suspension
|
Progressive ´soft damp´ with hydraulic single shock absorber |
|
Rear wheel travel
|
282 mm (11.1 inches) |
|
Front tire
|
110/70-17 |
|
Rear tire
|
150/60-17 |
|
Front brakes
|
Single disc. with 2-piston calipers |
|
Diameter
|
260 mm (10.2 inches) |
|
Rear brakes
|
Single disc. with 2-piston calipers |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
113.5 kg (250.2 pounds) |
|
Power/weight ratio
|
0.1322 HP/kg |
|
Seat height
|
870 mm (34.3 inches) If adjustable, lowest setting. |
|
Overall length
|
2210 mm (87.0 inches) |
|
Overall width
|
825 mm (32.5 inches) |
|
Ground clearance
|
265 mm (10.4 inches) |
|
Wheelbase
|
1470 mm (57.9 inches) |
|
Fuel capacity
|
9.50 litres (2.51 US gallons) |
|
Other specifications |
|
Starter
|
Kick |
