General information |
|
Model name
|

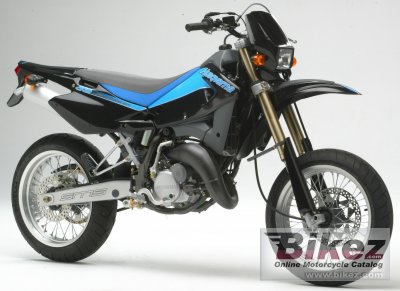

Husqvarna SM 125 S |
|
Year of manufacture
|
2005 |
|
Type
|
Super motard |
|
Rating
|
3.8 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
124.8 ccm (7.62 cubic inches) |
|
Type of engine
|
Single cylinder, two-stroke |
|
Bore x stroke
|
54.0 x 54.5 mm (2.1 x 2.1 inches) |
|
Fuel system
|
Carburettor. Dell´Ortho PHBH 28 mm |
|
Ignition
|
Digital CDI. |
|
Lubrication system
|
Dry sump with two oil pump rotor and cartridge filter |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet, multiplate type, hydraulic |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Single tube cradle, rear frame in light alloy. |
|
Front suspension
|
Upside-down telescopic hydraulic adjustable fork |
|
Rear suspension
|
Progressive ´soft damp´ |
|
Front tire
|
120/70-17 |
|
Rear tire
|
150/60-17 |
|
Front brakes
|
Single disc |
|
Diameter
|
260 mm (10.2 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
113.5 kg (250.2 pounds) |
|
Seat height
|
870 mm (34.3 inches) If adjustable, lowest setting. |
|
Overall length
|
2210 mm (87.0 inches) |
|
Ground clearance
|
265 mm (10.4 inches) |
|
Wheelbase
|
1470 mm (57.9 inches) |
|
Fuel capacity
|
10.20 litres (2.69 US gallons) |
|
Other specifications |
|
Color options
|
Yellow/blue |
|
Starter
|
Kick |
