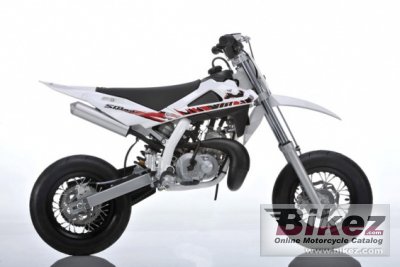

| Husqvarna's profilation of this bike |
| The essence of a real dirt bike in miniature. This is the nature of the new Husqvarna SM50, the ´mini´ that has everything you need to make your debut as a real rider. Liquid cooled two stroke engine, disc brakes, adjustable suspensions, steel chassis with the same shape as the Husqvarna racing bike, single cylinder engine with a clutch that can be adjusted according to the rider´s ability. |
|
General moped information |
|
Model
|
Husqvarna SM50 |
|
Year model
|
2013 |
|
Type
|
Minibike, sport |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
49.0 ccm (2.99 cubic inches) |
|
Type of engine
|
Single cylinder, two-stroke |
|
Compression
|
7.1:1 |
|
Bore x stroke
|
39.5 x 40.0 mm (1.6 x 1.6 inches) |
|
Fuel system
|
Carburettor. Dell´Orto PHBG 19 |
|
Ignition
|
Electronic C.D.I. |
|
Lubrication system
|
Premix 50 : 1 |
|
Cooling system
|
Liquid |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Dry, centrifugal type |
|
Driveline
|
Single speed, chain final drive |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Steel single tube, steel rear frame |
|
Front suspension
|
Marzocchi Upside-Down telescopic hydraulic fork with advanced axle |
|
Front wheel travel
|
185 mm (7.3 inches) |
|
Rear suspension
|
Sachs Progressive Soft Damp type with single hydraulic shock absorber, spring pre-load adjustment |
|
Rear wheel travel
|
200 mm (7.9 inches) |
|
Front tire
|
90/90-10 |
|
Rear tire
|
90/90-10 |
|
Front brakes
|
Single disc. Fixed disc and caliper with hydraulic control |
|
Diameter
|
160 mm (6.3 inches) |
|
Rear brakes
|
Single disc. Fixed disc and caliper with hydraulic control |
|
Diameter
|
140 mm (5.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
43.4 kg (95.7 pounds) |
|
Seat height
|
680 mm (26.8 inches) If adjustable, lowest setting. |
|
Overall height
|
880 mm (34.6 inches) |
|
Overall length
|
1400 mm (55.1 inches) |
|
Overall width
|
655 mm (25.8 inches) |
|
Ground clearance
|
250 mm (9.8 inches) |
|
Wheelbase
|
995 mm (39.2 inches) |
|
Fuel capacity
|
2.70 litres (0.71 US gallons) |
|
Other specifications |
|
Color options
|
White/black/red |
|
Starter
|
Kick |
