| Husqvarna's profilation of this bike |
| Liquid cooled two stroke engine, disc brakes, adjustable suspensions, steel chassis with the same shape as the Husqvarna racing bike, single cylinder engine with dual clutch transmission depending on the driver´s expertise and competitiveness. |
|
General moped information |
|
Model name
|

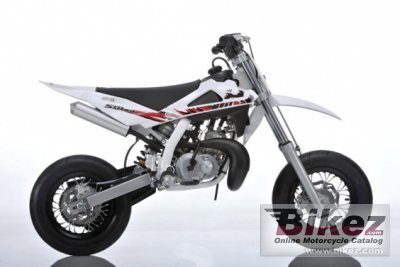

Husqvarna SM50 |
|
Year model
|
2012 |
|
Type
|
Minibike, sport |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
49.0 ccm (2.99 cubic inches) |
|
Type of engine
|
Single cylinder, two-stroke |
|
Compression
|
7.1:1 |
|
Bore x stroke
|
39.5 x 40.0 mm (1.6 x 1.6 inches) |
|
Fuel system
|
Carburettor. Dell´Orto PHBG 19 |
|
Ignition
|
Electronic C.D.I. |
|
Lubrication system
|
Premix 50 : 1 |
|
Cooling system
|
Liquid |
|
Gearbox
|
1-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Dry, centrifugal type |
|
Driveline
|
Single speed, chain final drive |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Steel single tube, steel rear frame |
|
Front suspension
|
Marzocchi conventional telescopic hydraulic fork with advanced axle |
|
Front wheel travel
|
200 mm (7.9 inches) |
|
Rear suspension
|
Sachs Progressive Soft Damp type with single hydraulic shock absorber, spring pre-load adjustment |
|
Rear wheel travel
|
200 mm (7.9 inches) |
|
Front tire
|
90/90-10 |
|
Rear tire
|
90/90-10 |
|
Front brakes
|
Single disc |
|
Diameter
|
160 mm (6.3 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
140 mm (5.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
43.4 kg (95.7 pounds) |
|
Seat height
|
680 mm (26.8 inches) If adjustable, lowest setting. |
|
Overall height
|
880 mm (34.6 inches) |
|
Overall length
|
1400 mm (55.1 inches) |
|
Overall width
|
655 mm (25.8 inches) |
|
Ground clearance
|
250 mm (9.8 inches) |
|
Wheelbase
|
995 mm (39.2 inches) |
|
Fuel capacity
|
2.70 litres (0.71 US gallons) |
|
Other specifications |
|
Color options
|
White/black/red |
|
Starter
|
Kick |
