General information |
|
Model name
|

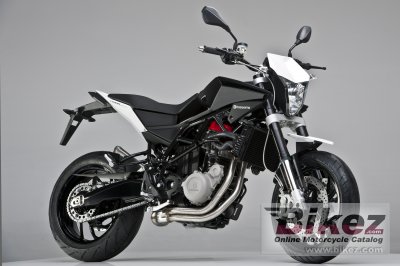

Husqvarna Nuda 900R |
|
Year of manufacture
|
2012 |
|
Type
|
Super motard |
|
Rating
|
3.4 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
898.0 ccm (54.80 cubic inches) |
|
Type of engine
|
Twin, four-stroke |
|
Engine details
|
Modified BMW F 800 R engine |
|
Output
|
103.3 HP (75.4 kW)) @ 8500 RPM |
|
Torque
|
100.0 Nm (10.2 kgf-m or 73.8 ft.lbs) @ 7000 RPM |
|
Compression
|
13.0:1 |
|
Bore x stroke
|
84.0 x 84.0 mm (3.3 x 3.3 inches) |
|
Fuel system
|
Injection. Electronic intake pipe injection / digital engine management, two engine mappings (switchable by customer) |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Lubrication system
|
Dry sump |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Multiple-disc clutch in oil bath, mechanically operated |
|
Emission details
|
Closed-loop 3-way catalytic converter, emission standard EU3 Performance |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tubular steel trellis main frame and rear frame, removable passenger footpegs |
|
Rake (fork angle)
|
24.5° |
|
Trail
|
101 mm (4.0 inches) |
|
Front suspension
|
Sachs Up Side Down fork, ø 48 mm, rebound and compression damping adjustable, spring preload mechanically adjustable |
|
Rear suspension
|
Cast aluminium dual swingarm, cantilever with Öhlins shock absorber, rebound and compression damping adjustable, spring preload mechanically adjustable, length adjustable (10 mm) |
|
Front tire
|
120/70-17 |
|
Rear tire
|
180/55-17 |
|
Front brakes
|
Single disc. Brembo four-piston radial calipers with sintered pads |
|
Rear brakes
|
Single disc. Brembo two piston caliper |
|
Wheels
|
Cast aluminium wheel |
|
Physical measures and capacities |
|
Dry weight
|
174.0 kg (383.6 pounds) |
|
Weight incl. oil, gas, etc
|
195.0 kg (429.9 pounds) |
|
Power/weight ratio
|
0.5934 HP/kg |
|
Seat height
|
875 mm (34.4 inches) If adjustable, lowest setting. |
|
Overall height
|
1225 mm (48.2 inches) |
|
Overall length
|
2190 mm (86.2 inches) |
|
Overall width
|
895 mm (35.2 inches) |
|
Wheelbase
|
1495 mm (58.9 inches) |
|
Fuel capacity
|
13.00 litres (3.43 US gallons) |
|
Reserve fuel capacity
|
3.00 litres (0.79 US gallons) |
|
Other specifications |
|
Color options
|
Red/white |
|
Starter
|
Electric |
|
Electrical
|
14 Ah, maintenance free battery. |
