| Husqvarna's profilation of this bike |
| The new CR50 captures the essence of a dirtbike but in miniature form. Featuring a powerful liquid cooled 2 stroke race motor in a Husqvarna developed chassis, the CR50 is destined for great success in the auto class. |
|
General moped information |
|
Model name
|

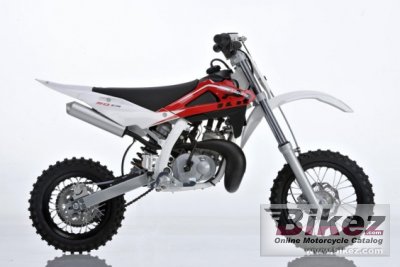

Husqvarna CR50 |
|
Year model
|
2013 |
|
Type
|
Minibike, cross |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Engine size
|
49.0 ccm (2.99 cubic inches) |
|
Type of engine
|
Single cylinder, two-stroke |
|
Bore x stroke
|
39.5 x 40.0 mm (1.6 x 1.6 inches) |
|
Fuel system
|
Carburettor. Dell´Orto PHBG 19 |
|
Ignition
|
Electronic C.D.I. |
|
Lubrication system
|
Premix 50 : 1 |
|
Cooling system
|
Liquid |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Dual stage adjustable clutch for novice/expert |
|
Driveline
|
Single speed, chain final drive |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Steel single tube, steel rear frame |
|
Front suspension
|
Marzocchi conventional telescopic hydraulic fork with advanced axle |
|
Front wheel travel
|
200 mm (7.9 inches) |
|
Rear suspension
|
Sachs Progressive Soft Damp type with single hydraulic shock absorber, spring pre-load adjustment |
|
Rear wheel travel
|
200 mm (7.9 inches) |
|
Front tire
|
60/100-12 |
|
Rear tire
|
2.75-10 |
|
Front brakes
|
Single disc |
|
Diameter
|
160 mm (6.3 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
140 mm (5.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
43.4 kg (95.7 pounds) |
|
Seat height
|
680 mm (26.8 inches) If adjustable, lowest setting. |
|
Overall height
|
880 mm (34.6 inches) |
|
Overall length
|
1400 mm (55.1 inches) |
|
Overall width
|
655 mm (25.8 inches) |
|
Ground clearance
|
250 mm (9.8 inches) |
|
Wheelbase
|
995 mm (39.2 inches) |
|
Fuel capacity
|
2.70 litres (0.71 US gallons) |
|
Other specifications |
|
Color options
|
Red/White |
|
Starter
|
Kick |
|
Factory warranty
|
2 year manufacturers warranty. |
