Honda XR 200 20132013 Honda XR 200 specifications, pictures, reviews and rating |

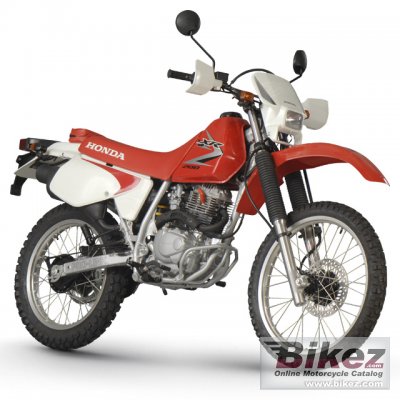

2013 Honda XR 200. Image credits - Honda.
| Honda's profilation of this bike |
| Off-road 4 stroke on a powerful 200cc engine with a superior rear cushion. Real bike of real men for a real ride. |
| General information | |
|---|---|
| Motorcycle name | Honda XR 200 |
| Model year | 2013 |
| Category | Enduro / offroad |
| Rating | 3.5 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 196.9 ccm (12.01 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Power output | 12.1 HP (8.8 kW)) @ 8000 RPM |
| Torque | 16.7 Nm (1.7 kgf-m or 12.3 ft.lbs) @ 6500 RPM |
| Compression | 10.0:1 |
| Bore x stroke | 63.5 x 62.2 mm (2.5 x 2.4 inches) |
| Fuel system | Carburettor. 20 mm Keihin |
| Fuel control | Overhead Valves (OHV) |
| Ignition | DC-CDI (Capacitor Discharge Ignition) |
| Lubrication system | Forced pressure and wet sump |
| Cooling system | Air |
| Gearbox | Automatic |
| Transmission type | Belt (final drive) |
| Clutch | Wet multiplate type |
| Chassis, suspension, brakes and wheels | |
| Rake (fork angle) | 26.0° |
| Trail | 105 mm (4.1 inches) |
| Front suspension | Telescopic fork |
| Front wheel travel | 254 mm (10.0 inches) |
| Rear suspension | Mono Shock Pro - Link Swing Arm |
| Rear wheel travel | 246 mm (9.7 inches) |
| Front tire | 3.00-21 |
| Rear tire | 110/90-(17 |
| Front brakes | Single disc. Hydraulic, ventilated |
| Rear brakes | Expanding brake (drum brake) |
| Physical measures and capacities | |
| Dry weight | 116.0 kg (255.7 pounds) |
| Power/weight ratio | 0.1043 HP/kg |
| Seat height | 858 mm (33.8 inches) If adjustable, lowest setting. |
| Overall height | 1176 mm (46.3 inches) |
| Overall length | 2135 mm (84.1 inches) |
| Overall width | 840 mm (33.1 inches) |
| Ground clearance | 293 mm (11.5 inches) |
| Wheelbase | 1375 mm (54.1 inches) |
| Fuel capacity | 9.00 litres (2.38 US gallons) |
| Oil capacity | 0.90 litres (0.95 US quarts) |
| Other specifications | |
| Color options | Red |
| Starter | Electric |
| Comments | Sold in some Asian countries. |
| Update specs | Report missing specs or required updates. |
| Maintenance and service specs * | |
| Spark plugs | NGK DR8ES-L |
| *) Always verify maintenance and service data with the bike owner's manual. | |
