Honda XR 100 R 2002

2002 Honda XR 100 R specifications, pictures, reviews and rating

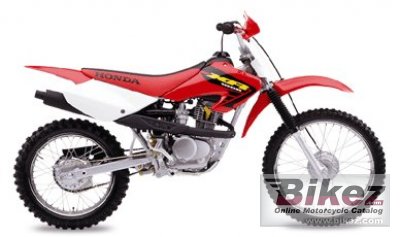

2002 Honda XR 100 R. Picture by Honda. Published with permission.. Submit more pictures.

General information
Model:	Honda XR 100 R
Year:	2002
Category:	Cross / motocross
Rating:	3.3 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike.
Engine and transmission
Displacement:	99.0 ccm (6.04 cubic inches)
Engine type:	Single cylinder, four-stroke
Compression:	9.4:1
Bore x stroke:	53.0 x 45.0 mm (2.1 x 1.8 inches)
Valves per cylinder:	2
Fuel control:	Single Overhead Cams (SOHC)
Cooling system:	Air
Gearbox:	5-speed
Transmission type, final drive:	Chain
Chassis, suspension, brakes and wheels
Front wheel travel:	150 mm (5.9 inches)
Rear wheel travel:	140 mm (5.5 inches)
Front brakes:	Expanding brake
Rear brakes:	Expanding brake
Physical measures and capacities
Dry weight:	74.8 kg (164.9 pounds)
Seat height:	775 mm (30.5 inches) If adjustable, lowest setting.
Ground clearance:	254 mm (10.0 inches)
Wheelbase:	1265 mm (49.8 inches)
Fuel capacity:	6.80 litres (1.80 gallons)
Reserve fuel capacity:	1.40 litres (0.37 gallons)
Other specifications
Update specs	Report missing specs or required updates.
Further information
Insurance costs	Compare US insurance quotes from the nation's top providers.
Finance options	Compare US motorcycle loan quotes from the nation's top providers.
Parts finder	Chaparral provides OEM parts for the US. CMSNL provides online schematics & OEM parts and ships to Australia, Austria, Bahamas, Belgium, Canada, China, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hong Kong, Hungary, Iceland, India, Ireland, Italy, Japan, Kuwait, Latvia, Lithuania, Luxembourg, Macedonia, Malta, Montenegro, The Netherlands, New Zealand, Norway, Poland, Portugal, South Africa, Spain, Sweden, Switzerland, Taiwan, Ukraine, United Kingdom, The United States and more. Also check out our overview of motorcycle webshops at Bikez.info.
Motocross parts	Parts and accessories available from Revzilla Motocross. Ships to the US.
Ask questions	Join the 02 Honda XR 100 R discussion group or the general Honda discussion group.
Related bikes	List related bikes for comparison of specs.
