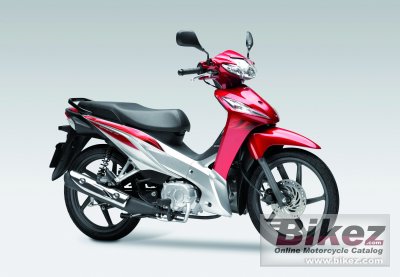

Honda Wave 110i 20122012 Honda Wave 110i specifications, pictures, reviews and rating |
| Honda's profilation of this bike |
| The new Wave 110i fuel-injected single-cylinder 109.1ccfour-stroke engine is Euro-3 compliant offering superb fuel efficiency with a total tank range of over 130 miles between fill ups. The Wave 110i offers extremely low-cost riding, with outstandingly low running and maintenance costs. |
| General information | |
|---|---|
| Model name | Honda Wave 110i |
| Year model | 2012 |
| Type | Scooter |
| Rating | 3.1 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 109.1 ccm (6.66 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Effect | 8.4 HP (6.1 kW)) @ 7500 RPM |
| Torque | 8.7 Nm (0.9 kgf-m or 6.4 ft.lbs) @ 5500 RPM |
| Compression | 9.0:1 |
| Bore x stroke | 50.0 x 50.0 mm (2.0 x 2.0 inches) |
| Fuel system | Injection. PGM-FI electronic fuel injection |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | Computer-controlled digital transistorised with electronic advance |
| Cooling system | Air |
| Gearbox | 4-speed |
| Transmission type | Chain (final drive) |
| Clutch | Multi Plate Wet Clutch and Automatic Centrifugal Clutch |
| Driveline | Clip type 420 chain |
| Chassis, suspension, brakes and wheels | |
| Frame type | Backbone; square pipe |
| Rake (fork angle) | 26.3° |
| Trail | 68 mm (2.7 inches) |
| Front suspension | 26mm telescopic fork |
| Rear suspension | Conventional dual shock absorber |
| Front tire | 70/90-17 |
| Rear tire | 80/90-17 |
| Front brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Diameter | 110 mm (4.3 inches) |
| Wheels | Aluminium cast wheel |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 99.1 kg (218.5 pounds) |
| Seat height | 760 mm (29.9 inches) If adjustable, lowest setting. |
| Overall height | 1080 mm (42.5 inches) |
| Overall length | 1870 mm (73.6 inches) |
| Overall width | 709 mm (27.9 inches) |
| Ground clearance | 135 mm (5.3 inches) |
| Wheelbase | 1227 mm (48.3 inches) |
| Fuel capacity | 3.70 litres (0.98 US gallons) |
| Other specifications | |
| Starter | Electric & kick |
| Electrical | 12V-3AH battery. |
