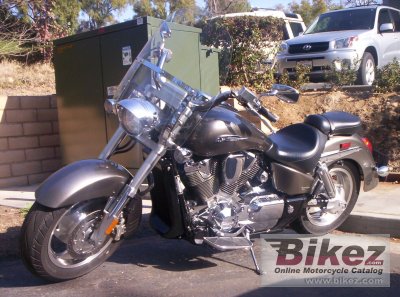

Honda VTX 1800 20052005 Honda VTX 1800 specifications, pictures, reviews and rating |
| Honda's profilation of this bike |
| The most extreme production V-twin cruiser ever—and now the most diverse as well. Presenting the 2005 VTX1800, available in five distinct, head-turning Styles, including the all-new, VTX1800F performance custom. |
| General information | |
|---|---|
| Model name | Honda VTX 1800 |
| Year of manufacture | 2005 |
| Type | Custom / cruiser |
| Price as new | US$ 12599. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.9 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 1795.0 ccm (109.53 cubic inches) |
| Type of engine | V2, four-stroke |
| Compression | 9.0:1 |
| Bore x stroke | 101.0 x 112.0 mm (4.0 x 4.4 inches) |
| Valves per cylinder | 3 |
| Fuel system | Injection. Programmed Fuel Injection (PGM-FI) with automatic choke |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | Digital with three-dimensional mapping,two spark plugs per cylinder |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Chassis, suspension, brakes and wheels | |
| Frame type | Front Suspension |
| Rake (fork angle) | 32.5° |
| Trail | 152 mm (6.0 inches) |
| Front suspension | 45.0mm inverted fork; |
| Front wheel travel | 130 mm (5.1 inches) |
| Rear suspension | Dual shocks with five-position spring-preload adjustability. |
| Rear wheel travel | 99 mm (3.9 inches) |
| Front tire | 130/70-R18 |
| Rear tire | 180/70-R16 |
| Front brakes | Double disc. LBS 3-piston calipers. |
| Diameter | 296 mm (11.7 inches) |
| Rear brakes | Single disc. LBS 3-piston calipers. |
| Diameter | 316 mm (12.4 inches) |
| Physical measures and capacities | |
| Dry weight | 323.9 kg (714.0 pounds) |
| Seat height | 709 mm (27.9 inches) If adjustable, lowest setting. |
| Wheelbase | 1717 mm (67.6 inches) |
| Fuel capacity | 18.16 litres (4.80 US gallons) |
| Other specifications | |
| Color options | Black, Black Flame, Candy Red Flame, Titanium, Candy Black Cherry, Candy Red, Silver Tribal, Titanium Tribal, Bright Blue Metallic, Candy Orange, Metallic Silver, Black/Candy Black Cherry, Black/Metallic Green |
| Starter | Electric |
| Comments | Model ID: VTX1800C |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 05 Honda VTX 1800 discussion group or the general Honda discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Discussions for every bike
Bikez has discussion forums for every bike. View comments, questions and answers at the 2005 Honda VTX 1800 discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes.| Rating sample for this Honda bike | |
Fun-factor for the 2005 Honda VTX 1800:  (92.0 out of 100)Click here for complete rating. |
|
