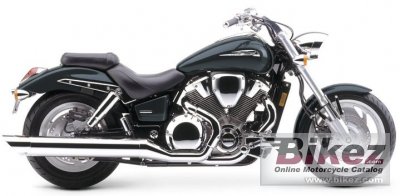

Honda VTX 1800 20042004 Honda VTX 1800 specifications, pictures, reviews and rating |
| Honda's profilation of this bike |
| The Honda VTX1800 is the most extreme mass-production V-twin cruiser ever built. And for the first time ever you can customize it with exclusive factory-assembled Style and Build Spec options and an array of select colors. |
| General information | |
|---|---|
| Model name | Honda VTX 1800 |
| Year of manufacture | 2004 |
| Type | Custom / cruiser |
| Price as new | US$ 12599. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.9 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 1832.0 ccm (111.79 cubic inches) |
| Type of engine | V2, four-stroke |
| Output | 107.0 HP (78.1 kW)) @ 5000 RPM |
| Torque | 165.0 Nm (16.8 kgf-m or 121.7 ft.lbs) @ 3000 RPM |
| Compression | 9.0:1 |
| Bore x stroke | 101.0 x 112.0 mm (4.0 x 4.4 inches) |
| Valves per cylinder | 3 |
| Fuel system | Injection |
| Fuel control | Single Overhead Cams (SOHC) |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Chassis, suspension, brakes and wheels | |
| Rake (fork angle) | 32.0° |
| Front suspension | 45mm inverted fork |
| Front wheel travel | 130 mm (5.1 inches) |
| Rear suspension | Dual shocks with five-position spring-preload adjustability |
| Rear wheel travel | 99 mm (3.9 inches) |
| Front tire | 130/70-R18 |
| Rear tire | 180/70-R16 |
| Front brakes | Double disc |
| Diameter | 296 mm (11.7 inches) |
| Rear brakes | Single disc |
| Diameter | 316 mm (12.4 inches) |
| Physical measures and capacities | |
| Dry weight | 335.0 kg (738.5 pounds) |
| Power/weight ratio | 0.3194 HP/kg |
| Seat height | 693 mm (27.3 inches) If adjustable, lowest setting. |
| Overall length | 2456 mm (96.7 inches) |
| Wheelbase | 1715 mm (67.5 inches) |
| Fuel capacity | 17.03 litres (4.50 US gallons) |
| Other specifications | |
| Color options | Black, Candy Orange Flame, Titanium Flame, Magenta Metallic |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 04 Honda VTX 1800 discussion group or the general Honda discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Discussions for every bike
Bikez has discussion forums for every bike. View comments, questions and answers at the 2004 Honda VTX 1800 discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes.| Rating sample for this Honda bike | |
Engine performance for the 2004 Honda VTX 1800:  (88.5 out of 100)Click here for complete rating. |
|
