General information |
|
Model
|

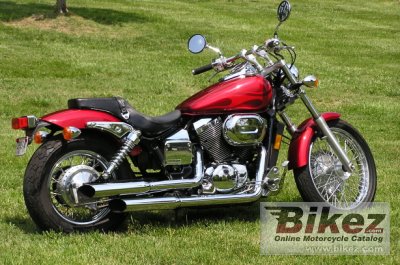

Honda VT 750 C2 Shadow |
|
Year of manufacture
|
2003 |
|
Type
|
Custom / cruiser |
|
Rating
|
3.8 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
745.0 ccm (45.46 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Output
|
45.0 HP (32.8 kW)) @ 5500 RPM |
|
Torque
|
63.0 Nm (6.4 kgf-m or 46.5 ft.lbs) @ 3000 RPM |
|
Compression
|
9.6:1 |
|
Bore x stroke
|
79.0 x 76.0 mm (3.1 x 3.0 inches) |
|
Valves per cylinder
|
3 |
|
Fuel system
|
Carburettor. Two 36mm diaphragm-type CV |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
Solid-state with electronic advance, two spark plugs per cylinder |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
41mm Telescopic fork. |
|
Front wheel travel
|
130 mm (5.1 inches) |
|
Rear suspension
|
Dual shocks 5-way spring-preload adjustability |
|
Rear wheel travel
|
90 mm (3.5 inches) |
|
Front tire
|
120/90-17 |
|
Rear tire
|
170/80-15 |
|
Front brakes
|
Single disc. Two-piston calipers. |
|
Diameter
|
296 mm (11.7 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Diameter
|
180 mm (7.1 inches) |
|
Physical measures and capacities |
|
Dry weight
|
229.0 kg (504.9 pounds) |
|
Power/weight ratio
|
0.1965 HP/kg |
|
Seat height
|
700 mm (27.6 inches) If adjustable, lowest setting. |
|
Overall length
|
2455 mm (96.7 inches) |
|
Overall width
|
980 mm (38.6 inches) |
|
Ground clearance
|
145 mm (5.7 inches) |
|
Wheelbase
|
1615 mm (63.6 inches) |
|
Fuel capacity
|
14.00 litres (3.70 US gallons) |
|
Other specifications |
|
Starter
|
Electric |
