General information |
|
Model
|

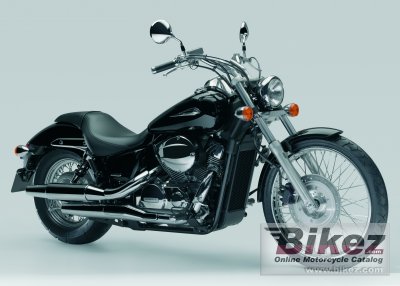

Honda Shadow Spirit 750 |
|
Year
|
2008 |
|
Category
|
Custom / cruiser |
| Price as new | US$ 6799. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.8 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
745.0 ccm (45.46 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Power
|
43.0 HP (31.4 kW)) |
|
Torque
|
60.5 Nm (6.2 kgf-m or 44.6 ft.lbs) |
|
Compression
|
9.6:1 |
|
Bore x stroke
|
79.0 x 76.0 mm (3.1 x 3.0 inches) |
|
Valves per cylinder
|
3 |
|
Fuel system
|
Carburettor. Single 34mm constant-velocity carburetor |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
CD with electronic advance, two spark plugs per cylinder |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
34.0° |
|
Trail
|
158 mm (6.2 inches) |
|
Front suspension
|
41mm fork |
|
Front wheel travel
|
117 mm (4.6 inches) |
|
Rear suspension
|
Dual shocks with five-position spring preload adjustability |
|
Rear wheel travel
|
89 mm (3.5 inches) |
|
Front tire
|
90/90-21 |
|
Rear tire
|
160/80-15 |
|
Front brakes
|
Single disc. Two-piston calipers. |
|
Diameter
|
296 mm (11.7 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Diameter
|
180 mm (7.1 inches) |
|
Physical measures and capacities |
|
Dry weight
|
229.0 kg (504.9 pounds) |
|
Weight incl. oil, gas, etc
|
248.0 kg (546.7 pounds) |
|
Power/weight ratio
|
0.1878 HP/kg |
|
Seat height
|
653 mm (25.7 inches) If adjustable, lowest setting. |
|
Wheelbase
|
1651 mm (65.0 inches) |
|
Fuel capacity
|
14.00 litres (3.70 US gallons) |
|
Oil capacity
|
2.70 litres (2.85 US quarts) |
|
Other specifications |
|
Color options
|
Black, Metallic Silver, Candy Dark Red/Flame, Ultra Blue Metallic/Flame, Metallic Silver/Flame |
|
Starter
|
Electric |
|
Comments
|
Model ID: VT750C2 |
| Update specs | Report missing specs or required updates. |
|
Maintenance and service specs * |
|
Engine oil
|
SAE 10W-30 |
|
Brake fluid
|
DOT 4 |
|
Coolant
|
2.00 litres (0.53 US gallons) |
|
Spark plugs
|
NGK DPR7EA-9, NGK DPR7EIX-9 |
|
Idle speed
|
1200 +/- 100 RPM |
|
Tire pressure front
|
29 PSI (2 Bar or 200 kPa) |
|
Tire pressure rear
|
29 PSI (2 Bar or 200 kPa) |
|
Fork tube size
|
41 mm (1.6 inches) |
| *) Always verify maintenance and service data with the bike owner's manual. |
|
