Honda CRF230L 20092009 Honda CRF230L specifications, pictures, reviews and rating |

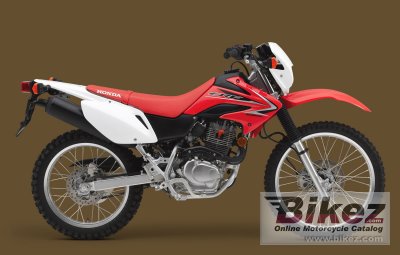

2009 Honda CRF230L. Image credits - Honda.
| Honda's profilation of this bike |
| It´s hard knowing where to begin when describing the CRF230L. First, it´s a dirtbike that happens to be street-legal, so it has the goods—223cc single-cylinder engine, six-speed gearbox, lightweight chassis, Pro-Link® rear suspension, turn signals—to take you anywhere, on-road or off. |
| General information | |
|---|---|
| Model name | Honda CRF230L |
| Year of manufacture | 2009 |
| Type | Enduro / offroad |
| Price as new | US$ 3699. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.7 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 223.0 ccm (13.61 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Compression | 9.0:1 |
| Bore x stroke | 65.5 x 66.2 mm (2.6 x 2.6 inches) |
| Fuel system | Carburettor. 30mm CV carburetor |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | CD |
| Cooling system | Air |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Rake (fork angle) | 26.8° |
| Trail | 103 mm (4.1 inches) |
| Front suspension | 37mm leading-axle Showa fork |
| Front wheel travel | 229 mm (9.0 inches) |
| Rear suspension | Pro-link Showa single shock with adjustable spring preload |
| Rear wheel travel | 160 mm (6.3 inches) |
| Front tire | 80/21-21 |
| Rear tire | 120/80-18 |
| Front brakes | Single disc |
| Diameter | 240 mm (9.4 inches) |
| Rear brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 121.1 kg (267.0 pounds) |
| Seat height | 810 mm (31.9 inches) If adjustable, lowest setting. |
| Ground clearance | 241 mm (9.5 inches) |
| Wheelbase | 1340 mm (52.8 inches) |
| Fuel capacity | 8.70 litres (2.30 US gallons) |
| Other specifications | |
| Color options | Red |
| Starter | Electric |
| Comments | Model ID: CRF230L |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 09 Honda CRF230L discussion group or the general Honda discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Discussions for every bike
Bikez has discussion forums for every bike. View comments, questions and answers at the 2009 Honda CRF230L discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes.| Rating sample for this Honda bike | |
Design and look for the 2009 Honda CRF230L:  (79.0 out of 100)Click here for complete rating. |
|
