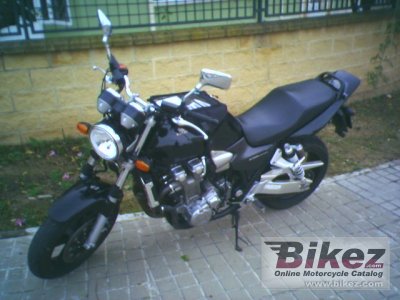

Honda CB 1300 Super Four 20032003 Honda CB 1300 Super Four specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Motorcycle name | Honda CB 1300 Super Four |
| Year of manufacture | 2003 |
| Type | Naked bike |
| Rating | 4.1 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Engine size | 1284.0 ccm (78.35 cubic inches) |
| Type of engine | In-line four, four-stroke |
| Output | 114.0 HP (83.2 kW)) @ 7500 RPM |
| Torque | 136.0 Nm (13.9 kgf-m or 100.3 ft.lbs) @ 6000 RPM |
| Top speed | 232.0 km/h (144.2 mph) |
| Compression | 9.6:1 |
| Bore x stroke | 78.0 x 67.2 mm (3.1 x 2.6 inches) |
| Fuel system | Injection. PGM-FI, 4 x 36mm throttle bodies |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | Digital |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet multi-plate coil spring |
| Fuel consumption | 6.21 litres/100 km (16.1 km/l or 37.88 mpg) |
| Greenhouse gases | 144.1 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Chassis, suspension, brakes and wheels | |
| Rake (fork angle) | 25.0° |
| Trail | 99 mm (3.9 inches) |
| Front suspension | 43mm cartridge forks |
| Rear suspension | Dual shocks, adjustable |
| Front tire | 120/70-17 |
| Rear tire | 180/55-17 |
| Front brakes | Double disc |
| Diameter | 310 mm (12.2 inches) |
| Rear brakes | Single disc |
| Diameter | 256 mm (10.1 inches) |
| Physical measures and capacities | |
| Dry weight | 224.0 kg (493.8 pounds) |
| Weight incl. oil, gas, etc | 246.0 kg (542.3 pounds) |
| Power/weight ratio | 0.5089 HP/kg |
| Seat height | 790 mm (31.1 inches) If adjustable, lowest setting. |
| Overall length | 2220 mm (87.4 inches) |
| Overall width | 770 mm (30.3 inches) |
| Ground clearance | 130 mm (5.1 inches) |
| Wheelbase | 1510 mm (59.4 inches) |
| Fuel capacity | 21.00 litres (5.55 US gallons) |
| Other specifications | |
| Starter | Electric |
