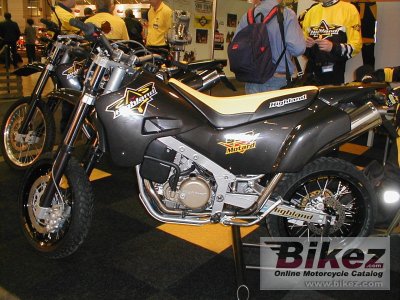

2003 Highland 950 V2 Motard. Picture credits - The respective copyright holder or manufacturer.
Submit more pictures.
|
|
|
General information |
|
Model
|
Highland 950 V2 Motard |
|
Year
|
2003 |
|
Category
|
Super motard |
|
Rating
|
3.5 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
950.0 ccm (57.97 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Power
|
85.0 HP (62.0 kW)) @ 6000 RPM |
|
Torque
|
103.0 Nm (10.5 kgf-m or 76.0 ft.lbs) @ 4600 RPM |
|
Bore x stroke
|
95.0 x 66.0 mm (3.7 x 2.6 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
CrMo steel |
|
Front suspension
|
50 mm WP, adjustable compression and rebound |
|
Front wheel travel
|
280 mm (11.0 inches) |
|
Rear suspension
|
WP, adjustable stiffness, compression and rebound |
|
Rear wheel travel
|
300 mm (11.8 inches) |
|
Front brakes
|
Brembo twin caliper |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Brembo single caliper |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
166.0 kg (366.0 pounds) |
|
Power/weight ratio
|
0.5120 HP/kg |
|
Seat height
|
910 mm (35.8 inches) If adjustable, lowest setting. |
|
Ground clearance
|
300 mm (11.8 inches) |
|
Wheelbase
|
1530 mm (60.2 inches) |
|
Fuel capacity
|
20.00 litres (5.28 US gallons) |
|
